STMicroelectronics VIPER50-22-E
Regular price
Dhs. 7.38
Regular price
Dhs. 7.75
Sale price
Dhs. 7.38
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 7.38 | Dhs. 7.38 |
| 15+ | Dhs. 7.13 | Dhs. 106.95 |
| 25+ | Dhs. 6.98 | Dhs. 174.50 |
| 50+ | Dhs. 6.59 | Dhs. 329.50 |
| 100+ | Dhs. 5.81 | Dhs. 581.00 |
| N+ | Dhs. 1.16 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

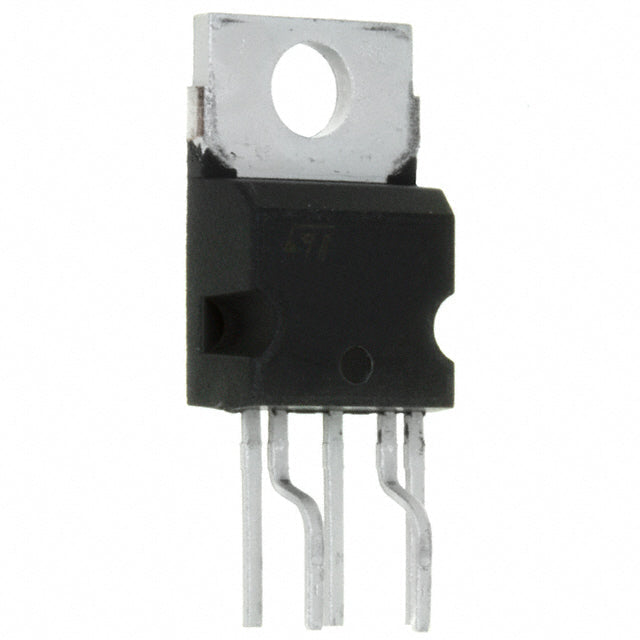

STMicroelectronics VIPER50-22-E Offline Flyback Converter
The VIPER50-22-E from STMicroelectronics is a high-performance 50W offline flyback converter IC designed for AC-DC power supply applications. This integrated power conversion solution combines a 620V avalanche-rugged power MOSFET with a current-mode PWM controller, delivering reliable and efficient power conversion for industrial, consumer, and telecommunications equipment.
Key Features & Benefits
- High Integration: Built-in 620V power MOSFET reduces external component count and board space
- Wide Operating Range: 8V to 15V supply voltage with 11V start-up capability
- Flexible Switching: Up to 200kHz switching frequency for compact transformer design
- Comprehensive Protection: Current limiting and over-temperature protection ensure long-term reliability
- Advanced Control: Frequency control, soft start, and sync capabilities for optimized performance
- Surface Mount Design: 5-PENTAWATT package for automated assembly and thermal efficiency
- RoHS Compliant: Meets environmental standards for global distribution
Typical Applications
- AC-DC adapters and chargers
- Auxiliary power supplies
- Industrial control systems
- Home appliances
- LED lighting drivers
- Telecom and networking equipment
All specifications are guaranteed by STMicroelectronics. For detailed application notes, reference designs, and lifecycle information, please refer to the manufacturer's datasheet.
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | VIPER™ |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 620V |
| Topology | Flyback |
| Voltage - Start Up | 11 V |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 15V |
| Duty Cycle | - |
| Frequency - Switching | Up to 200kHz |
| Power (Watts) | 50 W |
| Fault Protection | Current Limiting, Over Temperature |
| Control Features | Frequency Control, Soft Start, Sync |
| Operating Temperature | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | Pentawatt-5 HV (Bent and Staggered Leads) |
| Supplier Device Package | 5-PENTAWATT |
| ROHS |  |
VIPER50-22-E.pdf
×
