STMicroelectronics VN1160
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.81 | Dhs. 2.81 |
| 15+ | Dhs. 2.72 | Dhs. 40.80 |
| 25+ | Dhs. 2.66 | Dhs. 66.50 |
| 50+ | Dhs. 2.52 | Dhs. 126.00 |
| 100+ | Dhs. 2.22 | Dhs. 222.00 |
| N+ | Dhs. 0.44 | Price Inquiry |
Request Quote / Inquiry

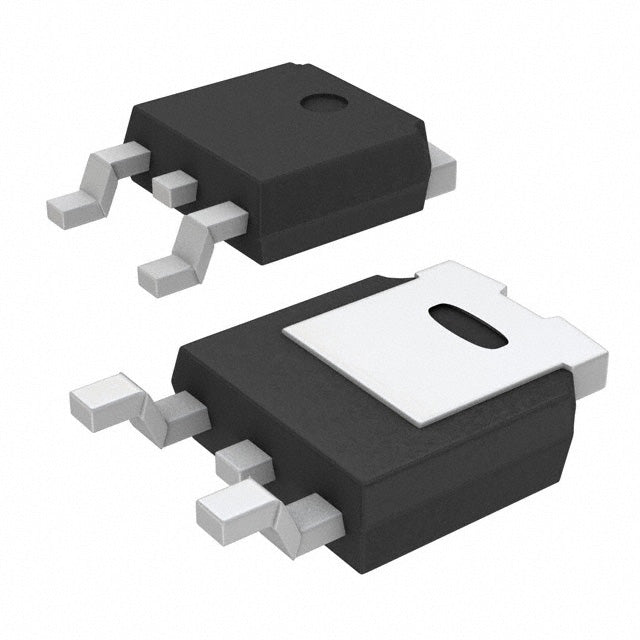

VN1160 High-Side Driver IC - STMicroelectronics
The VN1160 is a high-reliability high-side driver integrated circuit from STMicroelectronics, designed for automotive, industrial, and power management applications requiring robust switching performance. This surface-mount IC features a 9V to 16V supply voltage range and comes in a compact DPAK (TO-252-3) package, making it ideal for space-constrained PCB designs.
Key Features & Benefits
- Wide Supply Voltage Range: 9V to 16V operation for versatile power management applications
- Compact DPAK Package: TO-252-3 surface mount design optimizes board space and thermal performance
- RoHS Compliant: Meets environmental standards for global markets
- Authorized Distribution: 100% traceable components with manufacturer documentation
- Long Lifecycle Support: Ideal for aerospace, automotive, industrial, medical, and telecom applications
Applications
The VN1160 high-side driver is suitable for automotive body electronics, industrial control systems, power distribution modules, relay drivers, and solenoid control circuits where reliable switching and thermal management are critical.
Quality Assurance: All VN1160 units are sourced directly from authorized channels with full manufacturer traceability, original packaging, and compliance documentation including RoHS and REACH certifications.
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | |
| Packaging | Tube | |
| Output Isolation | - |
| Internal Switch(s) | - |
| Voltage - Breakdown | - |
| Topology | - |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 16V |
| Duty Cycle | - |
| Frequency - Switching | - |
| Power (Watts) | - |
| Fault Protection | - |
| Control Features | - |
| Operating Temperature | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| ROHS |  |
VN1160.pdf
