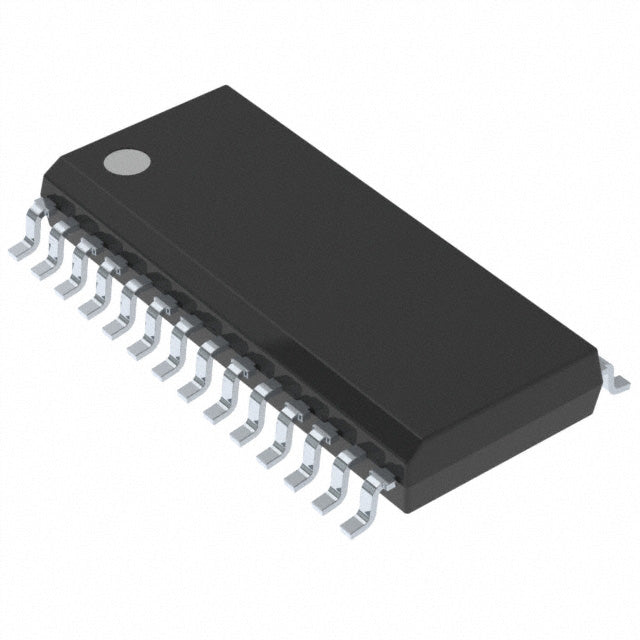

STMicroelectronics VN770KTR-E
Regular price
$2.20
Regular price
$2.32
Sale price
$2.20
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.20 | $2.20 |
| 15+ | $2.13 | $31.95 |
| 25+ | $2.09 | $52.25 |
| 50+ | $1.97 | $98.50 |
| 100+ | $1.74 | $174.00 |
| N+ | $0.35 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | OMNIFET II™, VIPower™ |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Half Bridge (2) |
| Applications | DC Motors, General Purpose, Relays |
| Interface | Logic |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 160mOhm (Max) |
| Current - Output / Channel | 9A |
| Current - Peak Output | - |
| Voltage - Supply | 5.5V ~ 36V |
| Voltage - Load | 40V (Max) |
| Features | Status Flag |
| Fault Protection | Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SO |
| ROHS |  |
VN770KTR-E.pdf
×
