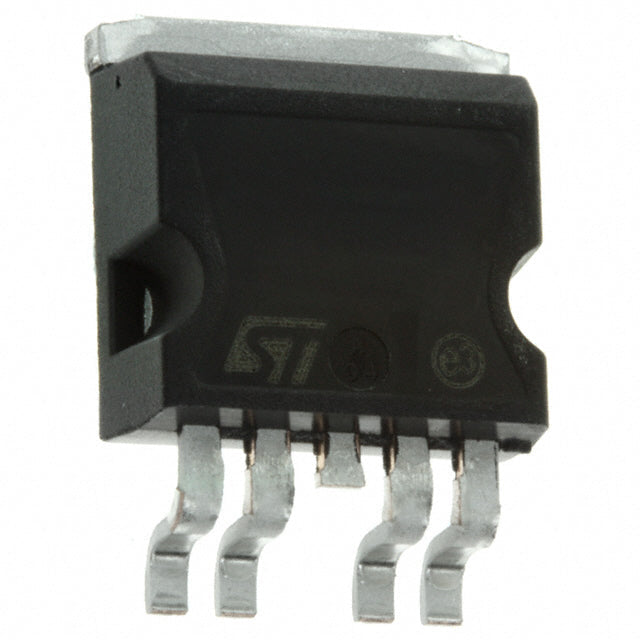

STMicroelectronics VN820B5-E
Regular price
$1.18
Regular price
$1.24
Sale price
$1.18
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.18 | $1.18 |
| 15+ | $1.14 | $17.10 |
| 25+ | $1.12 | $28.00 |
| 50+ | $1.05 | $52.50 |
| 100+ | $0.93 | $93.00 |
| N+ | $0.19 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | |
| Packaging | Tube | |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 5.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 9A |
| Rds On (Typ) | 40mOhm (Max) |
| nput Type | Non-Inverting |
| Features | Auto Restart, Status Flag |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | P2PAK (4 Leads + Tab) |
| Supplier Device Package | P2PAK |
| ROHS |  |
VN820B5-E.pdf
×
