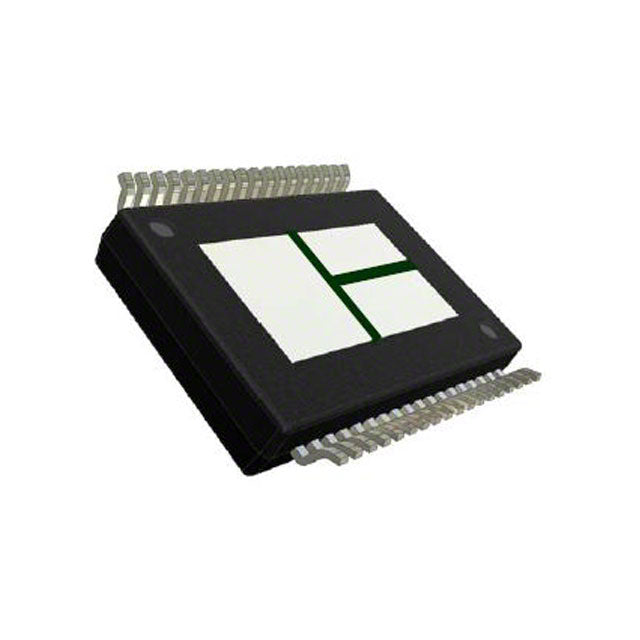

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
STMicroelectronics
VNH7013XPTR-E
VNH7013XPTR-E
Regular price
Dhs. 9.78
Regular price
Dhs. 10.30
Sale price
Dhs. 9.78
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 9.78 AED | Dhs. 9.78 AED |
| 15+ | Dhs. 9.48 AED | Dhs. 142.20 AED |
| 25+ | Dhs. 9.27 AED | Dhs. 231.75 AED |
| 50+ | Dhs. 8.76 AED | Dhs. 438.00 AED |
| 100+ | Dhs. 7.73 AED | Dhs. 773.00 AED |
| N+ | Dhs. 1.55 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | VIPower™ |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Half Bridge (2) |
| Applications | DC Motors, General Purpose |
| Interface | Logic |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 7.3mOhm LS, 5.7mOhm HS |
| Current - Output / Channel | 40A |
| Current - Peak Output | - |
| Voltage - Supply | 72V (Max) |
| Voltage - Load | - |
| Features | - |
| Fault Protection | Over Temperature |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 36-PowerBFSOP (0.295", 7.50mm Width) |
| Supplier Device Package | PowerSSO-36 TP |
Datasheets:
VNH7013XPTR-E
.pdf
×
