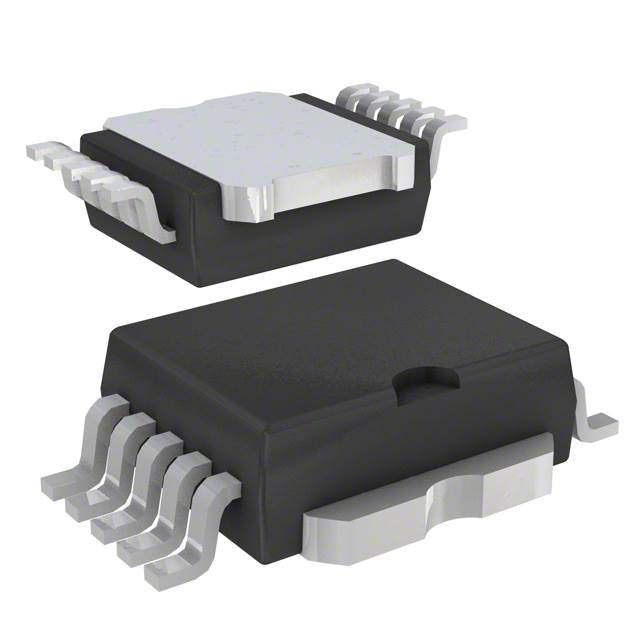

STMicroelectronics VNQ690SP
Regular price
$2.97
Regular price
$3.13
Sale price
$2.97
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.97 | $2.97 |
| 15+ | $2.88 | $43.20 |
| 25+ | $2.82 | $70.50 |
| 50+ | $2.66 | $133.00 |
| 100+ | $2.35 | $235.00 |
| N+ | $0.47 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | |
| Packaging | Tube | |
| Switch Type | General Purpose |
| Number of Outputs | 4 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 6V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 10A |
| Rds On (Typ) | 90mOhm (Max) |
| nput Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Supplier Device Package | 10-PowerSO |
| ROHS |  |
VNQ690SP.pdf
×
