AMD XC2S100-6FG456C

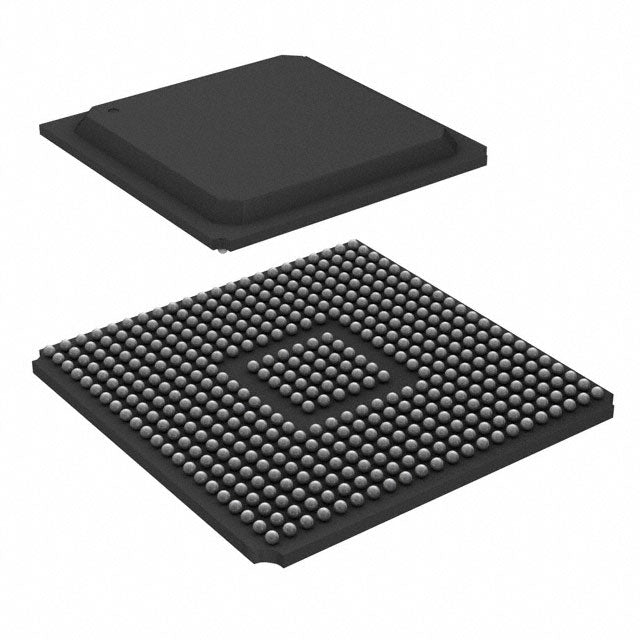

AMD Spartan-II XC2S100-6FG456C FPGA Overview

The XC2S100-6FG456C is a high-performance field-programmable gate array (FPGA) from AMD's proven Spartan-II family, designed for cost-sensitive applications requiring reliable logic density and flexible I/O capabilities. With 100,000 gates and 196 I/O pins in a compact 456-FBGA package, this device delivers exceptional value for industrial control, communications infrastructure, automotive systems, and edge computing applications.

Key Features & Benefits

• 100,000 System Gates – Ample logic resources for complex digital designs
• 2,700 Logic Cells – Flexible architecture for custom logic implementation
• 196 I/O Pins – Extensive connectivity for multi-interface designs
• 40,960 RAM Bits – Integrated block RAM for data buffering and storage
• Surface Mount 456-FBGA – Space-efficient 23x23mm package for high-density PCB layouts
• Industrial Temperature Range – Reliable operation from 0°C to 85°C (junction temp)
• 2.5V Core Supply – Low-power operation (2.375V to 2.625V)

Applications

This FPGA is ideal for industrial automation, motor control, protocol bridging, sensor interfacing, embedded vision processing, and custom logic acceleration in space-constrained designs.

All specifications are subject to AMD's published datasheet. For detailed timing, power consumption, and design guidelines, please refer to the official documentation.

• XC2S100-6FG456C.pdf
