XC2S150-5FGG456C

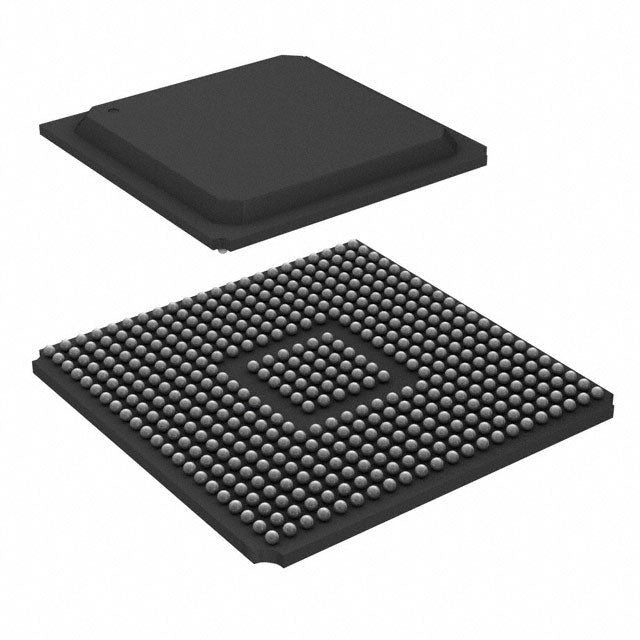

AMD Spartan-II XC2S150-5FGG456C FPGA

High-performance field-programmable gate array featuring 150,000 gates and 260 I/O pins in a compact 456-FBGA surface mount package. Ideal for industrial automation, communications infrastructure, automotive systems, and embedded computing applications requiring reliable, long-term availability.

Key Features

• 150,000 system gates with 3,888 logic elements for complex digital designs
• 260 I/O pins supporting versatile connectivity and interfacing
• 49,152 bits of embedded RAM for on-chip data storage
• Industrial temperature range (0°C to 85°C) for demanding environments
• Low-voltage operation (2.375V to 2.625V) for power-efficient designs
• RoHS compliant for environmental safety and regulatory compliance

Technical Specifications

Product attributes	Property Value
Manufacturer	AMD
Product Series	Spartan®-II
Packaging	Tray | Tray
Number of LABs/CLBs	864
Number of Logic Elements/Cells	3888
Total RAM Bits	49152
Number of I/O	260
Number of Gates	150000
Voltage - Supply	2.375V ~ 2.625V
Mounting Type	Surface Mount
Operating Temperature	0°C ~ 85°C (TJ)
Grade	-
Qualification	-
Package / Case	456-BBGA
Supplier Device Package	456-FBGA (23x23)
ROHS

Applications

This Spartan-II FPGA is well-suited for industrial control systems, telecommunications equipment, automotive electronics, aerospace instrumentation, and embedded processing platforms requiring proven reliability and long-term component availability.

Documentation: Full datasheets and design resources available from AMD.
