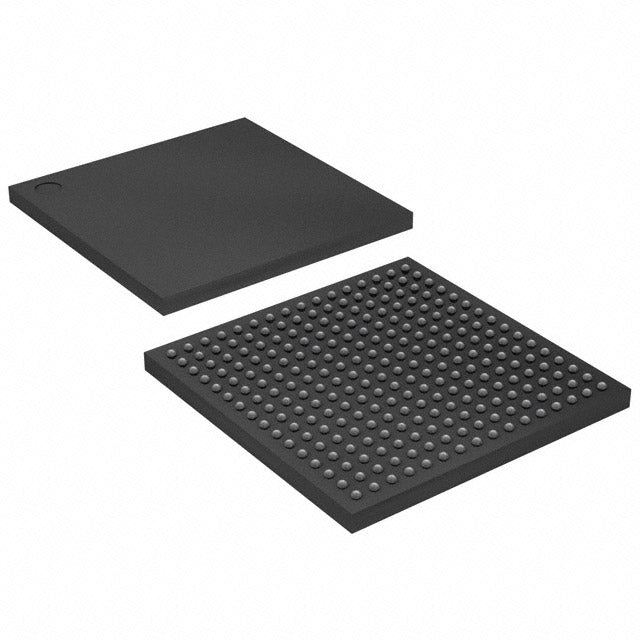

XC2S200-5FGG256C

AMD Spartan-II XC2S200-5FGG256C FPGA - High-Performance Programmable Logic

The XC2S200-5FGG256C is a high-performance FPGA from AMD's proven Spartan-II family, engineered for demanding industrial, automotive, and embedded applications. With 200,000 system gates and 176 I/O pins in a compact 256-FBGA package, this device delivers exceptional logic density and flexibility for complex digital designs.

Key Features & Benefits

• 200K System Gates - Ample logic resources for complex state machines, DSP functions, and control logic
• 5,292 Logic Cells - Flexible architecture with 1,176 CLBs for efficient design implementation
• 57Kb Embedded RAM - On-chip block RAM for data buffering, FIFOs, and lookup tables
• 176 I/O Pins - Extensive connectivity for multi-interface designs and high-speed communication
• Industrial Temperature Range - Reliable operation from 0°C to 85°C (junction temperature)
• Compact 256-FBGA Package - Space-efficient 17x17mm footprint for dense PCB layouts

Ideal Applications

This FPGA is perfectly suited for industrial control systems, communications infrastructure, automotive electronics, aerospace instrumentation, edge computing nodes, and protocol bridging applications where reconfigurable logic and proven reliability are essential.

Technical Specifications

Product attributes	Property Value
Manufacturer	AMD
Product Series	Spartan®-II
Packaging	Tray | Tray
Number of LABs/CLBs	1176
Number of Logic Elements/Cells	5292
Total RAM Bits	57344
Number of I/O	176
Number of Gates	200000
Voltage - Supply	2.375V ~ 2.625V
Mounting Type	Surface Mount
Operating Temperature	0°C ~ 85°C (TJ)
Grade	-
Qualification	-
Package / Case	256-BGA
Supplier Device Package	256-FBGA (17x17)
ROHS

RoHS Compliant - Meets environmental standards for lead-free manufacturing and global compliance.

Backed by AMD's decades of FPGA expertise and comprehensive development tool support, the XC2S200-5FGG256C offers a proven, cost-effective solution for your next programmable logic design.
