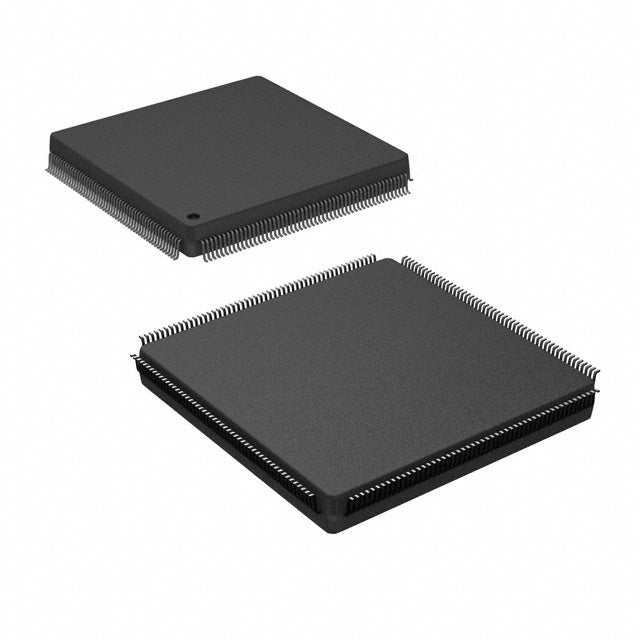

XC2S30-6PQ208C

AMD Spartan-II XC2S30-6PQ208C FPGA - High-Performance Programmable Logic

The XC2S30-6PQ208C is a member of AMD's proven Spartan-II FPGA family, delivering reliable programmable logic performance for industrial, automotive, communications, and embedded computing applications. With 30,000 gates and 140 I/O pins in a compact 208-pin PQFP package, this device offers an excellent balance of logic density, flexibility, and cost-effectiveness.

Key Features

• 30,000 System Gates – Ample logic resources for complex digital designs
• 140 User I/O – Extensive connectivity for interfacing with peripherals and systems
• 24,576 RAM Bits – On-chip memory for buffering and data storage
• Industrial Temperature Range – Operates reliably from 0°C to 85°C (junction temperature)
• Surface Mount 208-PQFP Package – Space-efficient 28x28mm footprint for high-density PCB layouts
• 2.5V Core Supply – Low-power operation (2.375V to 2.625V)

Applications

This FPGA is well-suited for embedded control, signal processing, protocol bridging, sensor interfacing, motor control, and custom logic acceleration in space-constrained designs.

Technical Specifications

All specifications are subject to AMD's published datasheet. For detailed timing, power, and configuration information, please refer to the official Spartan-II documentation.
