XC3S1000-4FGG676I

AMD Spartan-3 FPGA XC3S1000-4FGG676I - High-Density Programmable Logic Solution

The XC3S1000-4FGG676I is a high-performance FPGA from AMD's proven Spartan®-3 family, delivering 1 million system gates in a compact 676-ball fine-pitch BGA package. Engineered for cost-sensitive applications requiring substantial logic density, this device offers 391 user I/Os, 1920 CLBs, and 442 Kbits of block RAM, making it ideal for aerospace, automotive, industrial control, and telecommunications systems.

Key Features & Benefits

• High Logic Capacity: 1,000,000 system gates with 17,280 logic cells for complex digital designs
• Extensive I/O: 391 user I/O pins support diverse interface requirements and multi-protocol connectivity
• Embedded Memory: 442,368 bits of distributed RAM for buffering, FIFOs, and data processing
• Industrial Temperature Range: -40°C to +100°C (TJ) operation ensures reliability in harsh environments

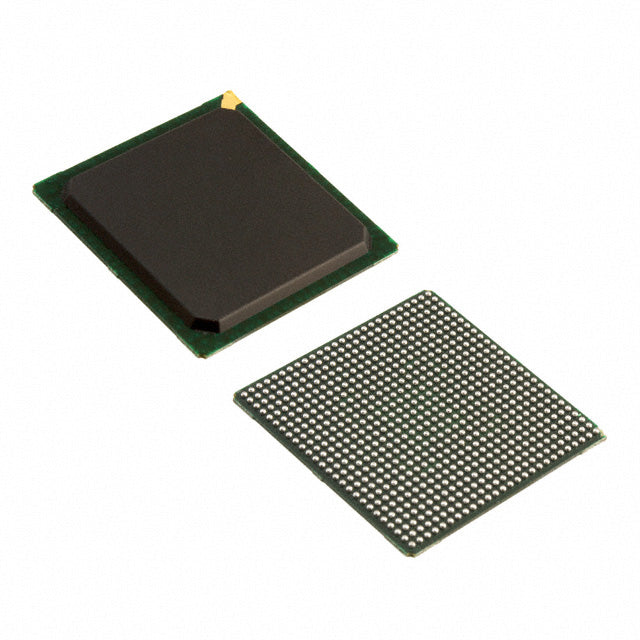

• Compact Footprint: 676-FBGA (27mm × 27mm) surface-mount package optimizes board space
• Low Power: 1.14V to 1.26V core voltage for energy-efficient operation

Applications

This FPGA is well-suited for embedded processing, digital signal processing (DSP), protocol bridging, motor control, sensor interfacing, and custom logic acceleration in mission-critical systems.

Authorized Distribution & Support

We supply genuine AMD components with full manufacturer traceability, certificates of conformance, and access to official datasheets and reference designs. Our team provides design-in support, lifecycle management, and obsolescence mitigation to ensure your project success from prototype to production.

Technical Specifications

Product attributes	Property Value
Manufacturer	AMD
Product Series	Spartan®-3
Packaging	Tray | Tray
Number of LABs/CLBs	1920
Number of Logic Elements/Cells	17280
Total RAM Bits	442368
Number of I/O	391
Number of Gates	1000000
Voltage - Supply	1.14V ~ 1.26V
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 100°C (TJ)
Grade	-
Qualification	-
Package / Case	676-BGA
Supplier Device Package	676-FBGA (27x27)
ROHS

All specifications subject to manufacturer's datasheet. Contact us for volume pricing, lead times, and custom packaging options.
