AMD XC3S100E-5TQ144C

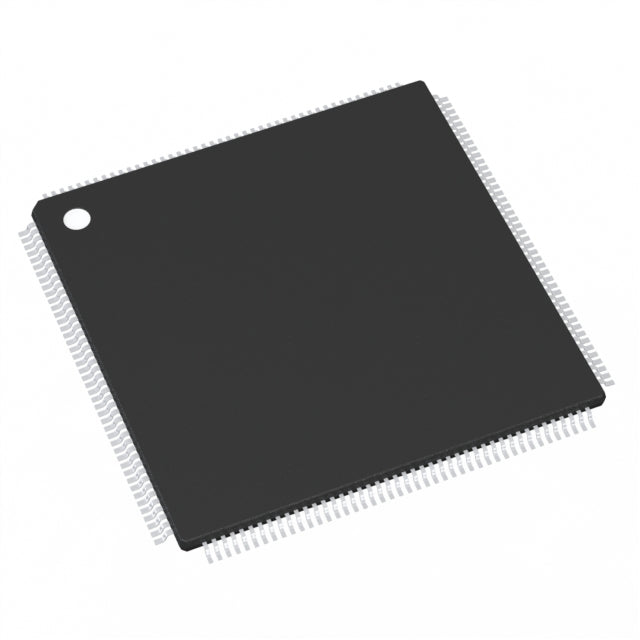

AMD Spartan-3E FPGA - XC3S100E-5TQ144C

The XC3S100E-5TQ144C is a high-performance, cost-effective FPGA from AMD's proven Spartan®-3E family, engineered for industrial applications requiring reliable programmable logic with extended lifecycle support. This device delivers 100,000 system gates with 108 I/O pins in a compact 144-pin TQFP surface-mount package, making it the ideal choice for space-constrained designs in aerospace, automotive, telecommunications, medical equipment, and industrial control systems.

Key Features & Technical Advantages

• 100K System Gates with 2,160 logic cells across 240 CLBs for implementing complex digital logic and state machines
• 73,728 RAM Bits of embedded block RAM for efficient data buffering, FIFO implementation, and on-chip storage
• 108 User I/O Pins providing flexible connectivity for diverse interface requirements including LVDS, LVCMOS, and legacy standards
• Industrial Temperature Range: 0°C to 85°C (TJ) ensuring reliable operation in harsh environments and mission-critical applications
• Low Power Operation: 1.14V to 1.26V core voltage for energy-efficient designs with minimal thermal management requirements
• Compact 144-TQFP Package: 20x20mm footprint optimized for high-density PCB layouts and cost-effective manufacturing
• Surface Mount Technology enabling automated assembly, high-volume production, and superior mechanical reliability
• Long Lifecycle Support: AMD's commitment to extended product availability ensures design longevity for critical applications
• Proven Spartan-3E Architecture: Mature, field-tested platform with extensive design resources and community support

Typical Applications & Use Cases

• Industrial Automation: PLC controllers, process monitoring, sensor interfaces, and real-time control systems
• Aerospace & Defense: Embedded avionics, signal processing, encryption engines, and ruggedized systems
• Automotive Electronics: ADAS modules, infotainment controllers, CAN/LIN interfaces, and diagnostic equipment
• Medical Devices: Patient monitoring, diagnostic imaging, laboratory instrumentation, and regulatory-compliant systems
• Telecommunications: Protocol converters, base station controllers, network processors, and SDR platforms
• Test & Measurement: Logic analyzers, oscilloscope interfaces, data acquisition systems, and ATE equipment
• Motor Control: FOC algorithms, encoder interfaces, PWM generation, and power management
• Consumer Electronics: Rapid prototyping, custom peripherals, video processing, and IoT gateways

Why Choose Our Authorized Distribution

As an authorized AMD distributor, we guarantee 100% authentic components sourced directly from the manufacturer with full chain-of-custody traceability documentation. Every XC3S100E-5TQ144C ships with:

• Complete datasheets, application notes, and reference designs
• RoHS and REACH compliance certifications
• Manufacturer warranty and technical support eligibility
• Anti-counterfeit verification and lot traceability
• Same-day shipping on in-stock orders
• Volume pricing and custom logistics solutions available

Design Resources & Support

Accelerate your development with comprehensive AMD Vivado® Design Suite support, including IP cores, constraint files, and board support packages. Our technical sales team provides application assistance, reference designs, and custom logistics solutions for volume orders.

Ready to integrate the XC3S100E-5TQ144C into your next design? Contact us for volume pricing, technical consultation, or expedited delivery options. In-stock and ready to ship.

• XC3S100E-5TQ144C.pdf
