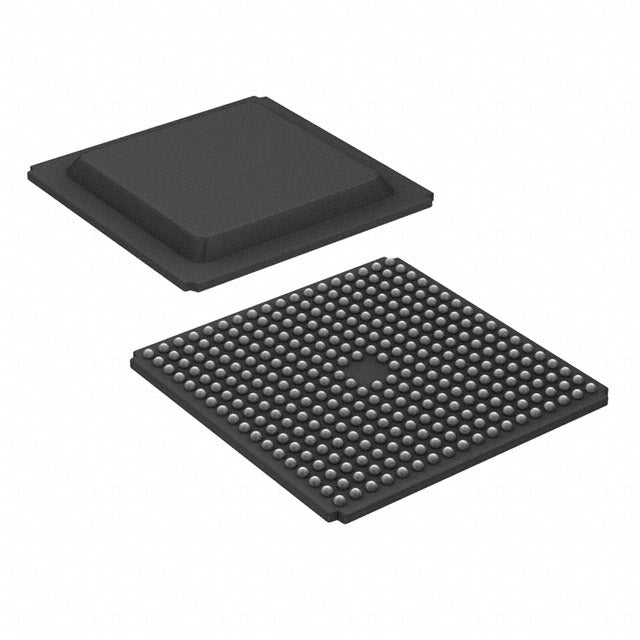

XC3S1200E-4FGG320C

AMD Spartan-3E FPGA - XC3S1200E-4FGG320C

The XC3S1200E-4FGG320C is a high-performance field-programmable gate array from AMD's proven Spartan-3E family, engineered for industrial, automotive, aerospace, and communications applications requiring reliable, cost-effective programmable logic.

Key Features

• 1.2 million system gates with 19,512 logic cells for complex digital designs
• 516 Kbit distributed RAM for embedded memory applications
• 250 user I/O pins in compact 320-ball fine-pitch BGA package (19×19mm)
• Industrial temperature range: 0°C to 85°C (junction)
• Low-voltage operation: 1.14V to 1.26V core supply
• Surface-mount 320-FBGA package for automated assembly
• RoHS compliant for environmental compliance

Applications

Ideal for embedded control, signal processing, protocol bridging, motor control, industrial automation, and edge computing where field-programmable flexibility and long product lifecycle are essential.

Technical Specifications

Product attributes	Property Value
Manufacturer	AMD
Product Series	Spartan®-3E
Packaging	Tray | Tray
Number of LABs/CLBs	2168
Number of Logic Elements/Cells	19512
Total RAM Bits	516096
Number of I/O	250
Number of Gates	1200000
Voltage - Supply	1.14V ~ 1.26V
Mounting Type	Surface Mount
Operating Temperature	0°C ~ 85°C (TJ)
Grade	-
Qualification	-
Package / Case	320-BGA
Supplier Device Package	320-FBGA (19x19)
ROHS

Documentation: Full datasheet and design resources available from AMD.
