XC3S1500-5FG456C

AMD Spartan-3 XC3S1500-5FG456C FPGA Overview

The XC3S1500-5FG456C is a high-density field-programmable gate array (FPGA) from AMD's proven Spartan®-3 family, delivering 1.5 million system gates in a compact 456-ball fine-pitch BGA package. This industrial-grade programmable logic device combines exceptional logic density with cost-effective performance for aerospace, automotive, telecommunications, and industrial control applications.

Key Features & Benefits

• High Logic Capacity: 3,328 configurable logic blocks (CLBs) providing 29,952 logic cells for complex digital designs
• Extensive I/O: 333 user I/O pins supporting multiple voltage standards and high-speed interfaces
• Embedded Memory: 589,824 bits of distributed and block RAM for data buffering and processing

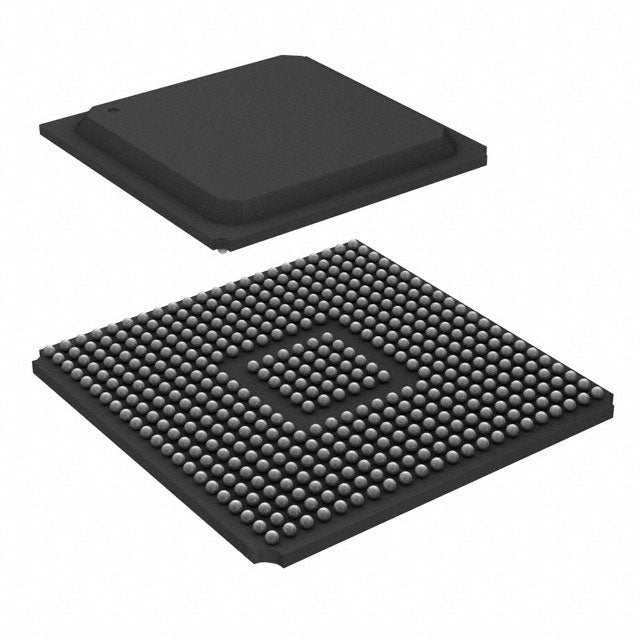

• Compact Package: 456-FBGA (23x23mm) surface-mount package optimized for space-constrained designs
• Industrial Temperature Range: Qualified for 0°C to 85°C (TJ) operation in demanding environments
• Reliable Power: 1.14V to 1.26V core supply voltage for stable operation

Applications

Ideal for digital signal processing, embedded control systems, communication protocol implementation, motor control, sensor interfacing, and custom computing architectures requiring reconfigurable logic.

Sourcing & Support

Available from authorized distributors with full manufacturer documentation, traceability, and long lifecycle support. Each device ships in standard tray packaging with complete technical specifications and reference designs.

Technical Specifications
