XC3S200A-4VQG100I

AMD Spartan-3A FPGA - XC3S200A-4VQG100I

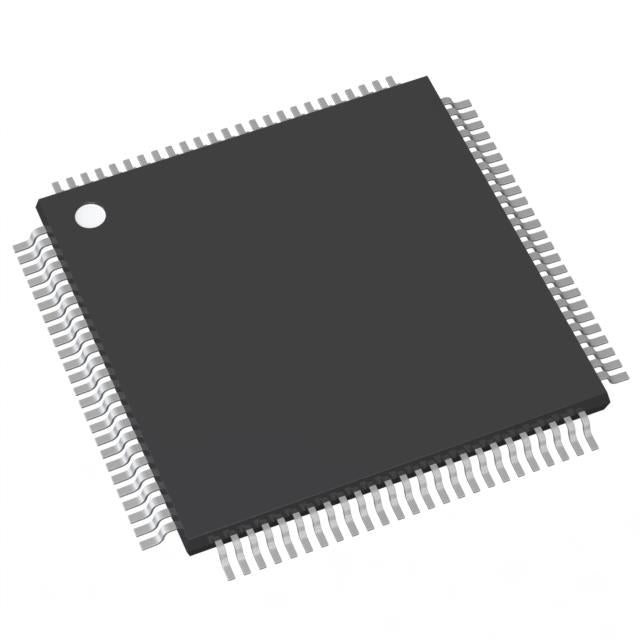

The XC3S200A-4VQG100I is a high-performance, cost-effective FPGA from AMD's proven Spartan-3A family, designed for industrial applications requiring reliable programmable logic in harsh environments. This surface-mount device delivers 200,000 gates of logic capacity with 68 I/O pins in a compact 100-pin VQFP package.

Key Features:

• 200K system gates with 4,032 logic cells across 448 CLBs
• 294,912 bits of distributed RAM for flexible data storage
• Industrial temperature range: -40°C to 100°C (TJ)
• Low power consumption: 1.14V to 1.26V supply voltage
• Compact 100-TQFP / 100-VQFP (14x14mm) footprint
• RoHS compliant for environmental compliance

Applications: Industrial control systems, automotive electronics, aerospace instrumentation, communications infrastructure, embedded processing, and edge computing solutions requiring long-term availability and proven reliability.

Documentation: Full datasheets, reference designs, and development tools available from AMD.

Technical Specifications

Product attributes	Property Value
Manufacturer	AMD
Product Series	Spartan®-3A
Packaging	Tray | Tray
Number of LABs/CLBs	448
Number of Logic Elements/Cells	4032
Total RAM Bits	294912
Number of I/O	68
Number of Gates	200000
Voltage - Supply	1.14V ~ 1.26V
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 100°C (TJ)
Grade	-
Qualification	-
Package / Case	100-TQFP
Supplier Device Package	100-VQFP (14x14)
ROHS
