XC3S200AN-5FTG256C

AMD Spartan-3AN FPGA - XC3S200AN-5FTG256C

The XC3S200AN-5FTG256C is a high-performance, cost-effective FPGA from AMD's proven Spartan-3AN family, designed for demanding industrial, automotive, aerospace, and communications applications. With 200,000 gates and 4,032 logic elements, this device delivers exceptional processing power in a compact 256-FTBGA package.

Key Features & Benefits

• High Logic Density: 200K gates and 4,032 logic cells provide ample resources for complex digital designs
• Extensive I/O Capability: 195 I/O pins enable flexible interfacing with multiple peripherals and systems
• Generous Memory: 294,912 total RAM bits for efficient data buffering and processing
• Industrial Temperature Range: Operates reliably from 0°C to 85°C (TJ) for harsh environments

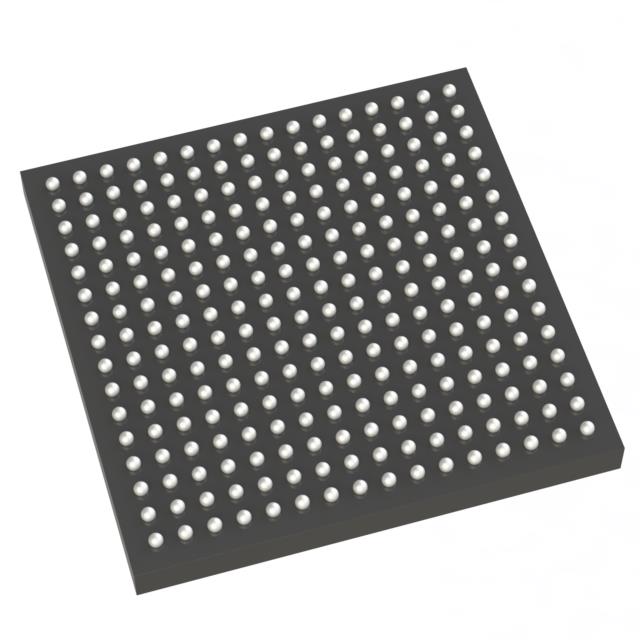

• Compact Form Factor: 256-FTBGA (17x17mm) surface mount package saves board space
• Low Power Design: 1.14V ~ 1.26V supply voltage for energy-efficient operation

Ideal Applications

• Industrial automation and control systems
• Automotive electronics and ADAS
• Aerospace and defense embedded systems
• Communications infrastructure and edge computing
• High-speed data acquisition and signal processing
• Motor control and power management

Complete Technical Specifications

Product attributes	Property Value
Manufacturer	AMD
Product Series	Spartan®-3AN
Packaging	Tray | Tray
Number of LABs/CLBs	448
Number of Logic Elements/Cells	4032
Total RAM Bits	294912
Number of I/O	195
Number of Gates	200000
Voltage - Supply	1.14V ~ 1.26V
Mounting Type	Surface Mount
Operating Temperature	0°C ~ 85°C (TJ)
Grade	-
Qualification	-
Package / Case	256-LBGA
Supplier Device Package	256-FTBGA (17x17)
ROHS

RoHS Compliant - Environmentally friendly and meets international standards for hazardous substance restrictions.

Backed by AMD's industry-leading quality and reliability, the XC3S200AN-5FTG256C delivers the performance and flexibility your next-generation embedded system demands.
