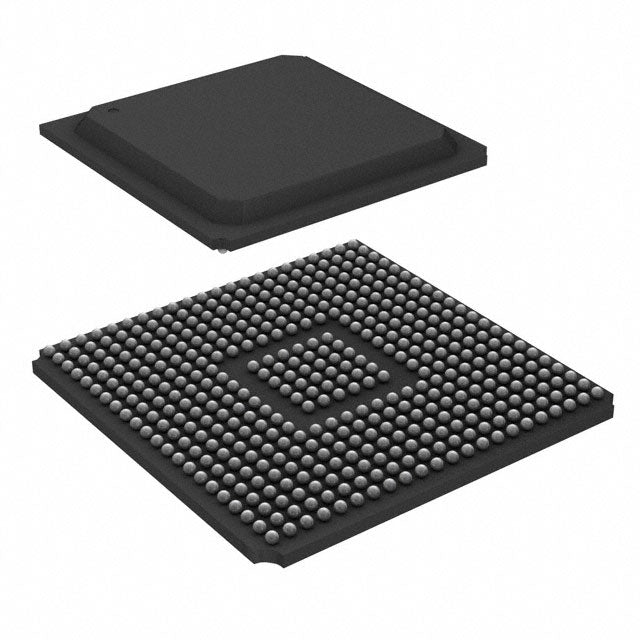

XC3S400-4FGG456C

AMD Spartan-3 XC3S400-4FGG456C FPGA - High-Performance Programmable Logic Solution

The XC3S400-4FGG456C is a versatile FPGA from AMD's proven Spartan-3 family, engineered for cost-effective, high-density programmable logic applications across industrial, automotive, communications, and embedded computing segments.

Key Features & Benefits

• 400,000 System Gates - Ample logic resources for complex digital designs and signal processing
• 8,064 Logic Cells in 896 CLBs - Flexible architecture for custom logic implementation
• 264 User I/O - Extensive connectivity for interfacing with peripherals and external systems
• 294,912 RAM Bits - Integrated block RAM for efficient data buffering and storage
• Industrial Temperature Range (0°C to 85°C) - Reliable operation in demanding environments
• Low Power Consumption - 1.14V to 1.26V supply voltage for energy-efficient designs
• 456-FBGA Package (23x23mm) - Compact surface-mount footprint for space-constrained applications

Ideal Applications

Perfect for embedded control systems, motor drives, industrial automation, communications infrastructure, aerospace instrumentation, edge computing nodes, and FPGA-based prototyping platforms.

Complete Technical Specifications

Product attributes	Property Value
Manufacturer	AMD
Product Series	Spartan®-3
Packaging	Tray | Tray
Number of LABs/CLBs	896
Number of Logic Elements/Cells	8064
Total RAM Bits	294912
Number of I/O	264
Number of Gates	400000
Voltage - Supply	1.14V ~ 1.26V
Mounting Type	Surface Mount
Operating Temperature	0°C ~ 85°C (TJ)
Grade	-
Qualification	-
Package / Case	456-BBGA
Supplier Device Package	456-FBGA (23x23)
ROHS

RoHS Compliant - Meets environmental standards for lead-free manufacturing.

Backed by AMD's industry-leading FPGA development tools and comprehensive technical documentation for rapid design integration and deployment.
