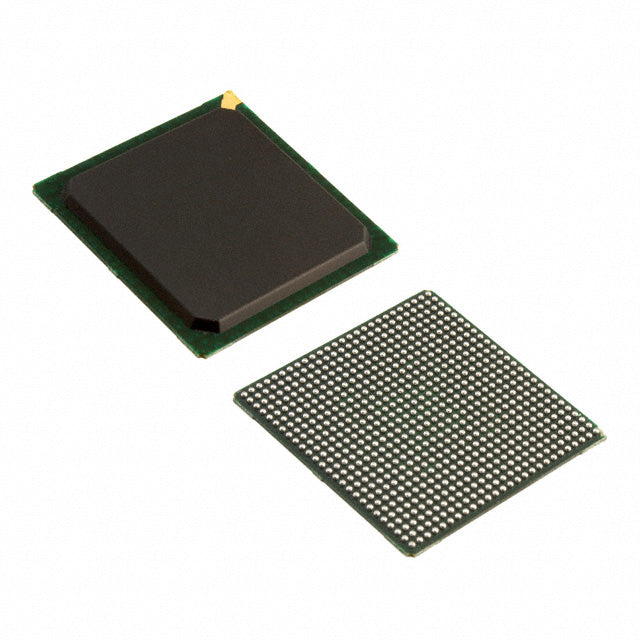

XC3S4000-5FGG676C

AMD Spartan-3 FPGA XC3S4000-5FGG676C - High-Density Programmable Logic Solution

The XC3S4000-5FGG676C is a high-performance FPGA from AMD's proven Spartan-3 family, engineered for demanding aerospace, automotive, industrial, and telecommunications applications. This device delivers 4 million system gates with 489 user I/O in a compact 676-ball fine-pitch BGA package.

Key Features & Benefits

• High Logic Density: 6,912 CLBs providing 62,208 logic cells for complex digital designs
• Extensive Memory: 1,769,472 total RAM bits for embedded data storage and buffering
• Flexible I/O: 489 user I/O pins supporting multiple voltage standards and signaling protocols
• Proven Reliability: Industrial temperature range (0°C to 85°C) with robust 676-FBGA packaging
• Design Security: Authentic AMD silicon with full manufacturer traceability and documentation

Ideal Applications

This FPGA excels in signal processing, protocol bridging, motor control, sensor interfacing, and custom logic acceleration where verified component authenticity and long-term availability are critical.

Quality Assurance

Every unit ships with complete manufacturer documentation, lot traceability, and RoHS compliance certification. Sourced from authorized distributors to ensure genuine AMD silicon and full warranty support.

Complete Technical Specifications

Product attributes	Property Value
Manufacturer	AMD
Product Series	Spartan®-3
Packaging	Tray | Tray
Number of LABs/CLBs	6912
Number of Logic Elements/Cells	62208
Total RAM Bits	1769472
Number of I/O	489
Number of Gates	4000000
Voltage - Supply	1.14V ~ 1.26V
Mounting Type	Surface Mount
Operating Temperature	0°C ~ 85°C (TJ)
Grade	-
Qualification	-
Package / Case	676-BGA
Supplier Device Package	676-FBGA (27x27)
ROHS
