XC3S400AN-4FTG256C

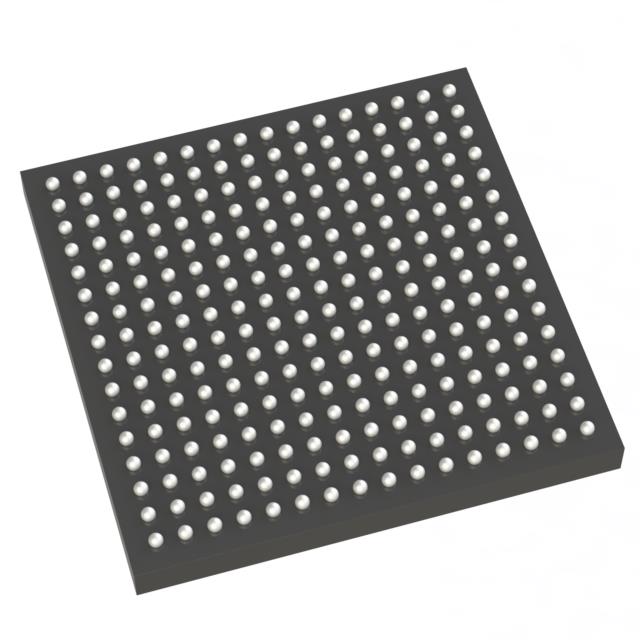

AMD Spartan-3AN FPGA - XC3S400AN-4FTG256C

The XC3S400AN-4FTG256C is a high-performance field-programmable gate array (FPGA) from AMD's Spartan®-3AN family, designed for industrial, automotive, aerospace, and communications applications. This device combines 400,000 system gates with integrated non-volatile configuration memory, making it ideal for embedded systems requiring reliable, instant-on operation.

Key Features

• 400K System Gates with 8,064 logic cells for complex digital designs
• 195 I/O Pins in compact 256-FTBGA (17x17mm) package
• 368,640 Total RAM Bits for on-chip data storage
• Industrial Temperature Range: 0°C to 85°C (TJ)
• Low Power: 1.14V ~ 1.26V supply voltage
• RoHS Compliant - environmentally friendly
• Surface Mount Technology for automated assembly

Applications

This FPGA is well-suited for industrial control systems, embedded processing, signal processing, communications infrastructure, and aerospace/defense applications where reliability and long-term availability are critical.

Technical Specifications

Product attributes	Property Value
Manufacturer	AMD
Product Series	Spartan®-3AN
Packaging	Tray | Tray
Number of LABs/CLBs	896
Number of Logic Elements/Cells	8064
Total RAM Bits	368640
Number of I/O	195
Number of Gates	400000
Voltage - Supply	1.14V ~ 1.26V
Mounting Type	Surface Mount
Operating Temperature	0°C ~ 85°C (TJ)
Grade	-
Qualification	-
Package / Case	256-LBGA
Supplier Device Package	256-FTBGA (17x17)
ROHS

Documentation: Full datasheets and technical documentation available from AMD.

Authenticity Guaranteed: All products are sourced from authorized distributors with full traceability and RoHS compliance certification.
