XC3S400AN-5FTG256C

AMD Spartan-3AN FPGA - XC3S400AN-5FTG256C

The XC3S400AN-5FTG256C is a high-performance, industrial-grade FPGA from AMD's Spartan-3AN family, designed for embedded systems, communications, and industrial automation applications. This programmable logic device delivers 400,000 gates of logic capacity with integrated non-volatile configuration memory.

Key Features

• 400,000 system gates with 8,064 logic cells for complex digital designs
• 896 configurable logic blocks (CLBs) for flexible implementation
• 368,640 bits of distributed RAM for high-speed data buffering
• 195 user I/O pins supporting multiple voltage standards
• Industrial temperature range: 0°C to 85°C (TJ)
• Low power consumption: 1.14V to 1.26V supply voltage

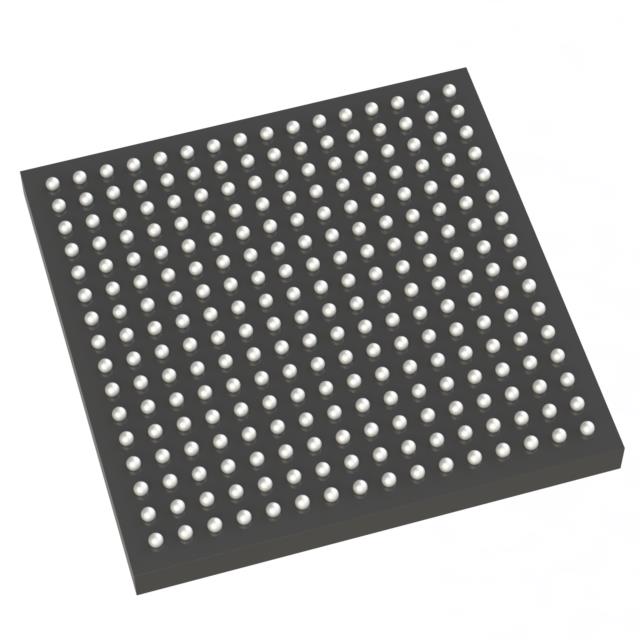

• 256-pin FTBGA package (17x17mm) for compact PCB layouts
• RoHS compliant for environmental compliance

Applications

Ideal for industrial control systems, embedded processing, digital signal processing, communications infrastructure, automotive electronics, and aerospace applications requiring reliable, field-programmable logic solutions.

Technical Specifications

Product attributes	Property Value
Manufacturer	AMD
Product Series	Spartan®-3AN
Packaging	Tray | Tray
Number of LABs/CLBs	896
Number of Logic Elements/Cells	8064
Total RAM Bits	368640
Number of I/O	195
Number of Gates	400000
Voltage - Supply	1.14V ~ 1.26V
Mounting Type	Surface Mount
Operating Temperature	0°C ~ 85°C (TJ)
Grade	-
Qualification	-
Package / Case	256-LBGA
Supplier Device Package	256-FTBGA (17x17)
ROHS
