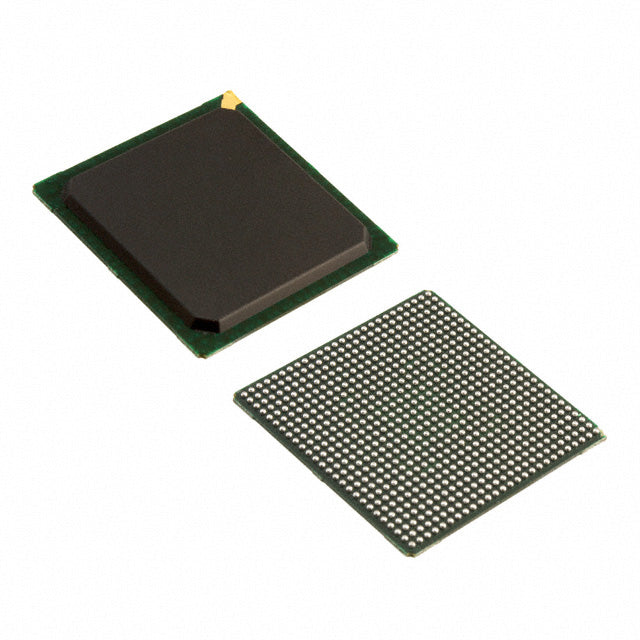

XC3S5000-4FGG676C

AMD XC3S5000-4FGG676C Spartan-3 FPGA - High-Density Programmable Logic Solution

The XC3S5000-4FGG676C is a high-performance FPGA from AMD's proven Spartan®-3 family, delivering 5 million gates of programmable logic capacity in a compact 676-pin fine-pitch BGA package. Engineered for demanding aerospace, automotive, industrial control, and telecommunications applications requiring long-term availability and proven reliability.

Key Features & Benefits

• Massive Logic Capacity: 74,880 logic cells across 8,320 CLBs provide extensive design flexibility
• High I/O Count: 489 user I/O pins support complex interfacing requirements
• Embedded Memory: 1,916,928 total RAM bits for efficient data buffering and processing
• Industrial Temperature Range: Qualified for 0°C to 85°C junction temperature operation
• Compact Footprint: 676-FBGA (27x27mm) surface-mount package optimizes board space
• Authorized Stock: Genuine AMD components with full manufacturer traceability and documentation

Technical Specifications

Product attributes	Property Value
Manufacturer	AMD
Product Series	Spartan®-3
Packaging	Tray | Tray
Number of LABs/CLBs	8320
Number of Logic Elements/Cells	74880
Total RAM Bits	1916928
Number of I/O	489
Number of Gates	5000000
Voltage - Supply	1.14V ~ 1.26V
Mounting Type	Surface Mount
Operating Temperature	0°C ~ 85°C (TJ)
Grade	-
Qualification	-
Package / Case	676-BGA
Supplier Device Package	676-FBGA (27x27)
ROHS

Applications

Ideal for high-reliability systems including aerospace avionics, automotive ADAS and infotainment, industrial automation controllers, telecommunications infrastructure, medical imaging equipment, and defense systems requiring long product lifecycles.

Quality & Authenticity Guarantee

All XC3S5000-4FGG676C units are sourced from authorized AMD distributors with complete chain-of-custody documentation, date codes, and lot traceability. RoHS compliant. Backed by our commitment to genuine components and technical support.
