XC3S500E-4FGG320C

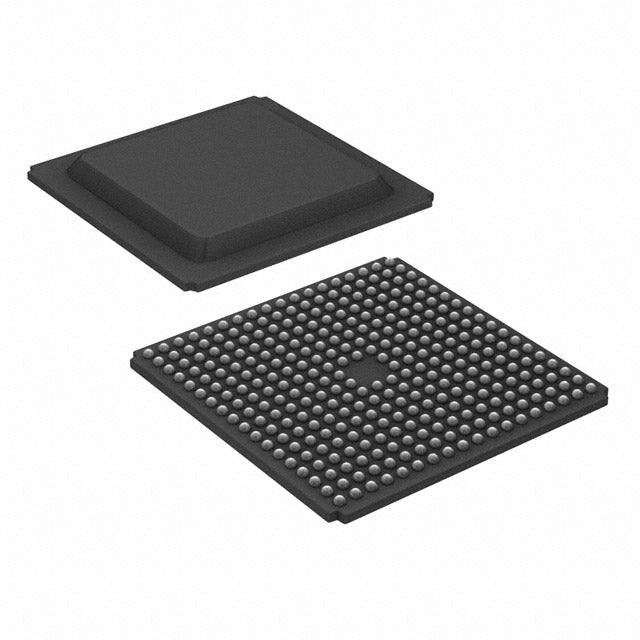

AMD Spartan-3E FPGA - XC3S500E-4FGG320C

The XC3S500E-4FGG320C is a high-performance FPGA from AMD's proven Spartan-3E family, engineered for cost-sensitive applications requiring reliable programmable logic. With 500,000 system gates and 232 I/O pins, this device delivers exceptional flexibility for industrial control, communications infrastructure, automotive systems, and edge computing platforms.

Key Features & Benefits

• 500K System Gates - Ample logic resources for complex digital designs
• 232 I/O Pins - Extensive connectivity for multi-interface applications
• 368,640 RAM Bits - Integrated block RAM for data buffering and processing
• 10,476 Logic Cells - Flexible architecture for custom logic implementation
• Industrial Temperature Range - Reliable operation from 0°C to 85°C (TJ)
• Low Power Consumption - 1.14V to 1.26V supply voltage for energy-efficient designs
• 320-FBGA Package - Compact 19x19mm footprint for space-constrained designs

Ideal Applications

This FPGA is perfectly suited for industrial automation controllers, communications protocol converters, automotive infotainment systems, medical device interfaces, aerospace data acquisition, and edge AI acceleration platforms.

Technical Specifications

Product attributes	Property Value
Manufacturer	AMD
Product Series	Spartan®-3E
Packaging	Tray | Tray
Number of LABs/CLBs	1164
Number of Logic Elements/Cells	10476
Total RAM Bits	368640
Number of I/O	232
Number of Gates	500000
Voltage - Supply	1.14V ~ 1.26V
Mounting Type	Surface Mount
Operating Temperature	0°C ~ 85°C (TJ)
Grade	-
Qualification	-
Package / Case	320-BGA
Supplier Device Package	320-FBGA (19x19)
ROHS

Why Choose AMD Spartan-3E?

The Spartan-3E family offers proven reliability, extensive development tool support, and a mature ecosystem of IP cores and reference designs. Backed by AMD's decades of FPGA expertise, this device ensures long-term availability and comprehensive technical documentation for your mission-critical applications.
