AMD XC3S500E-4FGG320I

AMD Spartan-3E XC3S500E-4FGG320I FPGA Overview

The XC3S500E-4FGG320I is a high-performance FPGA from AMD's proven Spartan-3E family, engineered for demanding industrial, automotive, aerospace, and communications applications. With 500,000 logic gates, 232 I/O pins, and an industrial-grade temperature range, this device delivers exceptional flexibility and reliability for embedded system designs.

Key Features & Benefits

• 500,000 Logic Gates – Ample resources for complex digital logic implementations
• 232 I/O Pins – Extensive connectivity for multi-interface designs
• 10,476 Logic Elements – High-density programmable logic capacity
• 368,640 RAM Bits – Integrated block RAM for data buffering and storage
• Industrial Temperature Range (-40°C to 100°C) – Reliable operation in harsh environments

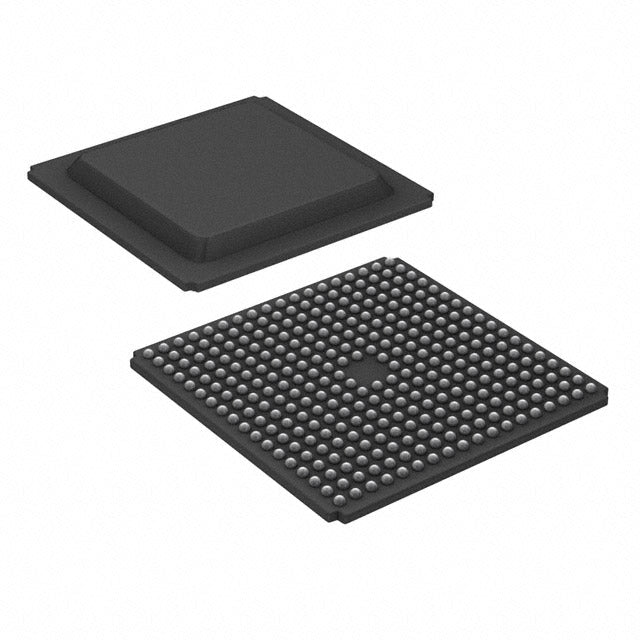

• 320-FBGA Package (19x19mm) – Compact surface-mount footprint for space-constrained designs
• Low Power Consumption (1.14V ~ 1.26V) – Energy-efficient operation for battery-powered and embedded systems

Ideal Applications

This FPGA is perfectly suited for:

• Industrial automation and control systems
• Automotive electronics and ADAS
• Aerospace and defense embedded systems
• Communications infrastructure and protocol bridging
• Edge computing and IoT gateway devices
• High-speed data acquisition and signal processing

Why Choose AMD Spartan-3E?

The Spartan-3E family is renowned for its cost-effectiveness, proven reliability, and extensive ecosystem support. With comprehensive development tools, IP cores, and reference designs available from AMD, you can accelerate your time-to-market while ensuring long-term product availability and supply chain stability.

All products are sourced from authorized distributors and come with full traceability documentation. RoHS compliant. Contact us for volume pricing, lead times, and technical support.

• XC3S500E-4FGG320I.pdf
