AMD XC3S50A-4VQ100C

AMD Spartan-3A FPGA XC3S50A-4VQ100C

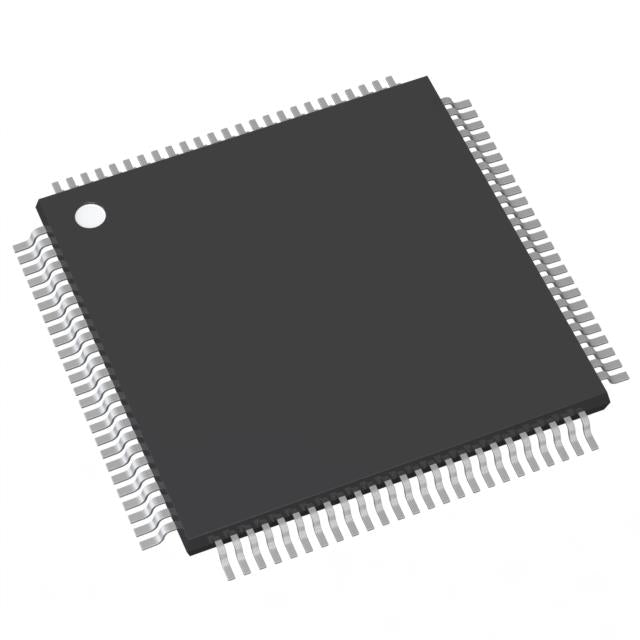

The XC3S50A-4VQ100C is a high-performance FPGA from AMD's Spartan-3A family, designed for industrial, automotive, and embedded applications requiring reliable programmable logic solutions. This surface-mount device delivers 50,000 gates with 68 I/O pins in a compact 100-VQFP package, making it ideal for space-constrained designs.

Key Features & Benefits

• Proven Spartan-3A Architecture: 1,584 logic elements across 176 CLBs provide flexible, scalable logic resources
• Generous Memory: 55,296 total RAM bits for embedded data buffering and processing
• Industrial Temperature Range: Operates reliably from 0°C to 85°C (TJ) for harsh environments
• Compact Form Factor: 100-TQFP/100-VQFP (14x14mm) surface-mount package saves board space
• Stable Power Supply: 1.14V ~ 1.26V supply voltage for low-power operation
• 68 I/O Pins: Ample connectivity for interfacing with sensors, controllers, and communication buses

Typical Applications

This FPGA is well-suited for motor control, sensor fusion, protocol bridging, embedded vision processing, and real-time data acquisition systems in industrial automation, automotive electronics, and aerospace instrumentation.

Authentic AMD components with full traceability and quality assurance. Suitable for industrial-grade designs requiring long product lifecycles.

• XC3S50A-4VQ100C.pdf
