AMD XC4003E-2PQ100C

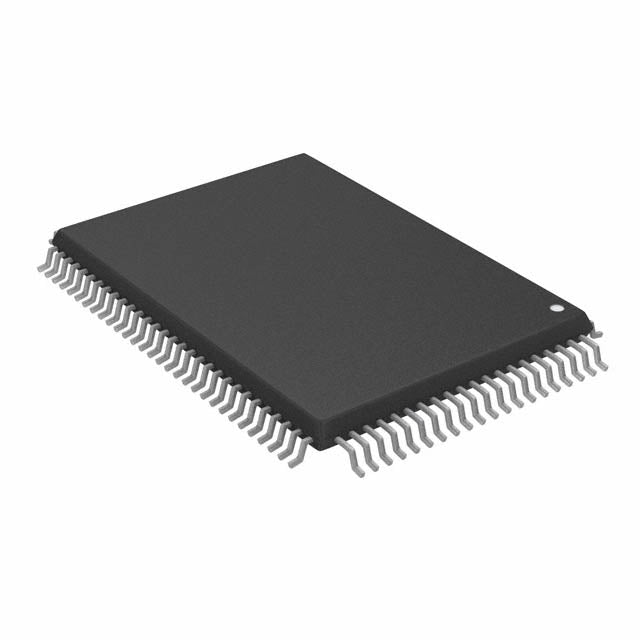

AMD XC4003E-2PQ100C FPGA - High-Performance Programmable Logic Device

The XC4003E-2PQ100C is a member of AMD's proven XC4000E/X FPGA family, delivering reliable programmable logic performance for industrial, communications, and embedded system applications. With 3000 gates and 77 I/O pins in a compact 100-pin PQFP package, this FPGA provides the flexibility and integration you need for complex digital designs.

Key Features & Benefits

• 3000 Logic Gates - Ample resources for medium-complexity digital circuits
• 77 I/O Pins - Extensive connectivity for interfacing with external components
• 3200 RAM Bits - Integrated memory for data buffering and storage
• 100 CLBs (Configurable Logic Blocks) - Flexible architecture for custom logic implementation
• Surface Mount Package - Space-efficient 100-PQFP design for automated assembly
• Industrial Temperature Range - Reliable operation from 0°C to 85°C
• 5V Supply Voltage - Compatible with standard TTL/CMOS logic levels (4.75V ~ 5.25V)

Ideal Applications

This FPGA is well-suited for industrial control systems, telecommunications equipment, data acquisition systems, embedded computing platforms, and prototyping of custom digital circuits where reconfigurability and proven reliability are essential.

All specifications are guaranteed by AMD. This is an authentic, factory-fresh component suitable for professional engineering applications.

• XC4003E-2PQ100C.pdf
