AMD XC4003E-3PC84I

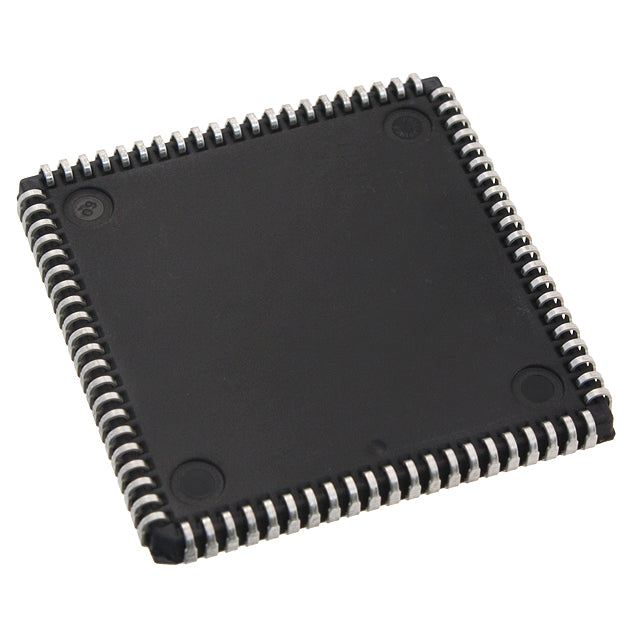

AMD XC4003E-3PC84I Field-Programmable Gate Array (FPGA)

The XC4003E-3PC84I is a high-performance FPGA from AMD's proven XC4000E/X series, engineered for demanding industrial, automotive, aerospace, and communications applications. With 3000 gates and 61 I/O pins in a compact 84-PLCC surface-mount package, this device delivers reliable programmable logic performance across extended temperature ranges.

Key Features & Benefits

• 3000 Logic Gates - Ample capacity for complex digital designs and signal processing
• 61 I/O Pins - Flexible connectivity for interfacing with multiple peripherals and systems
• Industrial Temperature Range - Operates reliably from -40°C to 100°C (TJ) for harsh environments
• 3200 RAM Bits - Integrated memory for data buffering and state machines
• 100 CLBs (Configurable Logic Blocks) - Versatile architecture for custom logic implementation
• Surface Mount 84-PLCC Package - Space-efficient design for high-density PCB layouts
• 5V Supply Voltage (4.5V ~ 5.5V) - Compatible with standard TTL/CMOS logic levels

Ideal Applications

This FPGA is perfectly suited for aerospace avionics, automotive control systems, industrial automation, edge computing nodes, communications infrastructure, and embedded system prototyping where reliability and extended temperature operation are critical.

All specifications are guaranteed by AMD. This is an authentic, factory-fresh component with full traceability and quality documentation.

• XC4003E-3PC84I.pdf
