AMD XC4003E-4VQ100C

AMD XC4003E-4VQ100C FPGA - XC4000E/X Series

The XC4003E-4VQ100C is a high-performance Field-Programmable Gate Array (FPGA) from AMD's proven XC4000E/X product family. Engineered for reliability and versatility, this FPGA delivers 3000 gates and 77 I/O pins in a compact 100-VQFP surface-mount package, making it ideal for industrial control, embedded systems, communications infrastructure, and aerospace applications.

Key Features

• 3000 Gates with 100 configurable logic blocks (CLBs) for flexible digital logic implementation
• 77 I/O pins for extensive connectivity and interfacing
• 3200 bits of embedded RAM for on-chip data storage
• 238 logic elements/cells for complex combinational and sequential logic

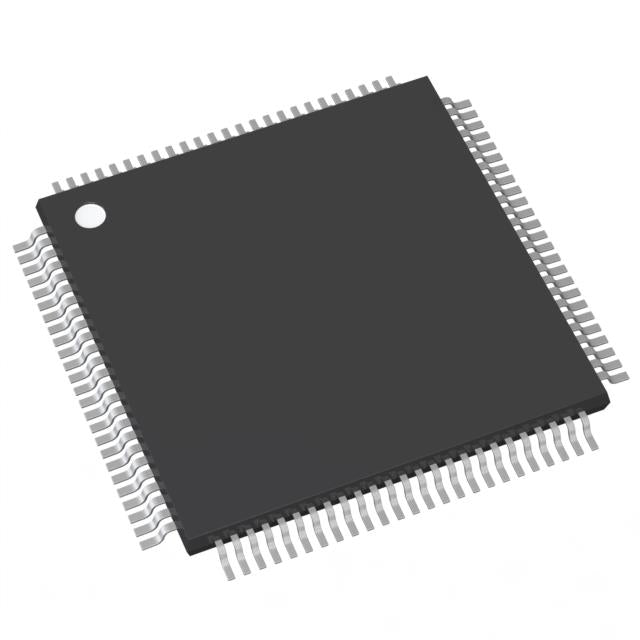

• Surface mount 100-TQFP package (100-VQFP 14x14mm) for space-efficient PCB designs
• Wide operating temperature range: 0°C to 85°C (TJ) for industrial-grade reliability
• 5V supply voltage: 4.75V to 5.25V for compatibility with legacy and standard logic families

Applications

This FPGA is well-suited for prototyping, production designs, and legacy system upgrades in sectors requiring proven, long-lifecycle components. Common use cases include custom digital logic, glue logic replacement, protocol conversion, signal processing, and control systems.

All components are sourced from authorized distributors and undergo quality verification to ensure authenticity and reliability.

• XC4003E-4VQ100C.pdf
