AMD XC4005E-4PQ208I

AMD XC4005E-4PQ208I Field-Programmable Gate Array (FPGA)

The XC4005E-4PQ208I is a high-performance FPGA from AMD's proven XC4000E/X series, designed for industrial applications requiring reliable programmable logic solutions. This device offers 5000 gates and 112 I/O pins in a compact 208-PQFP surface-mount package, making it ideal for embedded systems, industrial control, telecommunications, and aerospace applications.

Key Features & Benefits

• 5000 Logic Gates - Provides substantial programmable logic resources for complex digital designs
• 112 I/O Pins - Extensive connectivity for interfacing with multiple peripherals and systems
• Industrial Temperature Range - Operates reliably from -40°C to 100°C (TJ) for harsh environments
• 196 CLBs (Configurable Logic Blocks) - Flexible architecture with 466 logic elements for versatile design implementation
• 6272 RAM Bits - Integrated memory for data buffering and storage applications

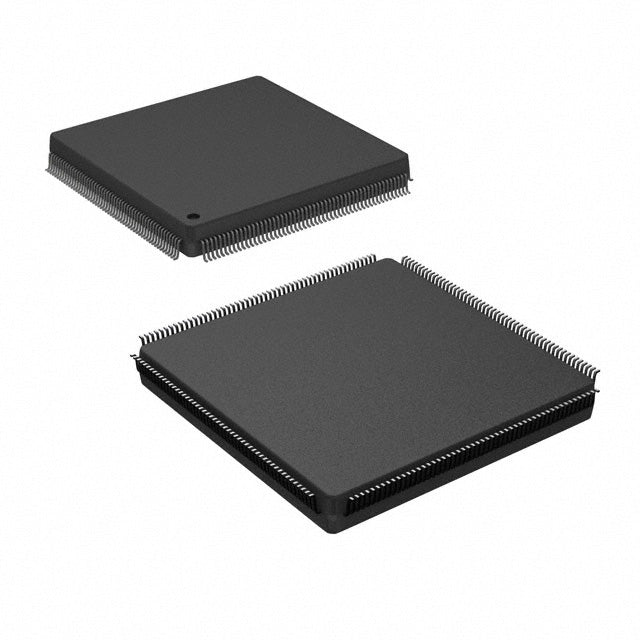

• Surface Mount Package - 208-BFQFP/PQFP (28x28mm) for automated assembly and space-efficient PCB layouts
• Wide Voltage Range - 4.5V to 5.5V supply voltage for compatibility with standard 5V systems

Applications

This FPGA is well-suited for industrial automation, embedded control systems, signal processing, protocol conversion, custom interface logic, and legacy system upgrades requiring programmable logic with proven reliability.

All specifications are subject to manufacturer's datasheet. Please verify compatibility with your application requirements.

• XC4005E-4PQ208I.pdf
