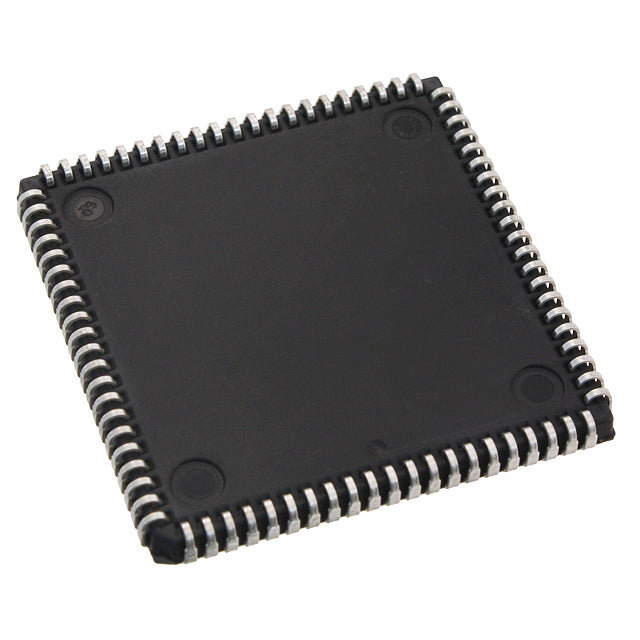

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
AMD
XC4005XL-3PC84C
XC4005XL-3PC84C
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 64.43 AED | Dhs. 64.43 AED |
| 15+ | Dhs. 62.41 AED | Dhs. 936.15 AED |
| 25+ | Dhs. 61.06 AED | Dhs. 1,526.50 AED |
| 50+ | Dhs. 57.66 AED | Dhs. 2,883.00 AED |
| 100+ | Dhs. 50.88 AED | Dhs. 5,088.00 AED |
| N+ | Dhs. 10.18 AED | Price Inquiry |
Couldn't load pickup availability
Apply for PCBA engineering assistance
AMD XC4005XL-3PC84C FPGA - High-Performance Programmable Logic Solution
The XC4005XL-3PC84C is a field-programmable gate array (FPGA) from AMD's proven XC4000E/X series, delivering reliable programmable logic performance for industrial, automotive, aerospace, and embedded computing applications. With 5,000 gates and 61 I/O pins in a compact 84-PLCC surface-mount package, this FPGA offers exceptional flexibility for custom digital logic implementations.
Key Features & Benefits
- 5,000 Logic Gates - Ample resources for complex digital designs and signal processing
- 61 I/O Pins - Extensive connectivity for interfacing with peripherals and external systems
- 196 CLBs (Configurable Logic Blocks) - Flexible architecture for custom logic implementation
- 6,272 Total RAM Bits - On-chip memory for data buffering and state machines
- 3V to 3.6V Supply Voltage - Low-power operation suitable for battery-powered and embedded systems
- Surface Mount 84-PLCC Package - Compact footprint (29.31mm x 29.31mm) for space-constrained designs
- Industrial Temperature Range - Reliable operation from 0°C to 85°C (junction temperature)
Ideal Applications
This FPGA is well-suited for industrial control systems, automotive electronics, communications infrastructure, edge computing devices, and legacy system upgrades requiring programmable logic with proven reliability.
Complete Technical Specifications
| Product attributes | Property Value |
| Manufacturer | AMD |
| Product Series | XC4000E/X |
| Packaging | Tray | Tray |
| Number of LABs/CLBs | 196 |
| Number of Logic Elements/Cells | 466 |
| Total RAM Bits | 6272 |
| Number of I/O | 61 |
| Number of Gates | 5000 |
| Voltage - Supply | 3V ~ 3.6V |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Grade | - |
| Qualification | - |
| Package / Case | 84-LCC (J-Lead) |
| Supplier Device Package | 84-PLCC (29.31x29.31) |
All specifications are preserved from the original datasheet to ensure accuracy for engineering reference and procurement decisions.
Datasheets:
XC4005XL-3PC84C.pdf
