AMD XC4020XL-3HT144I

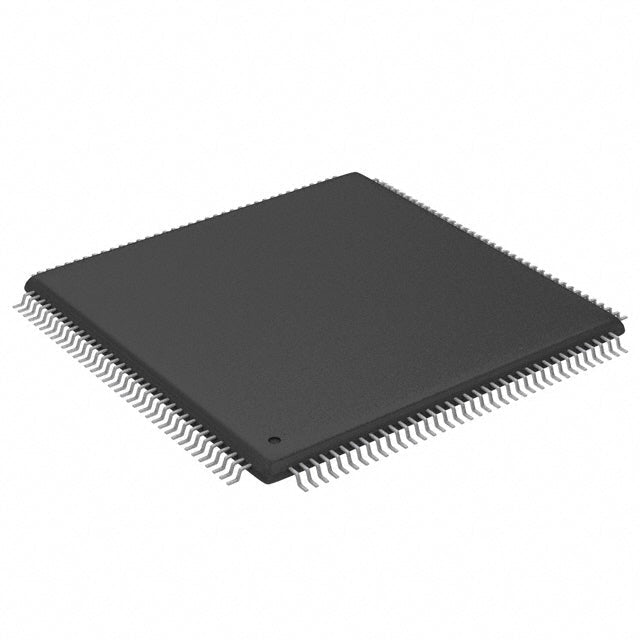

AMD XC4020XL-3HT144I Field Programmable Gate Array

The XC4020XL-3HT144I is a high-performance FPGA from AMD's proven XC4000E/X series, designed for demanding applications requiring reliable logic implementation with extensive I/O capabilities. This industrial-grade component features 20,000 gates and 113 I/O pins in a compact 144-TQFP surface mount package, making it ideal for aerospace, telecommunications, industrial control systems, and embedded computing applications.

Key Features & Benefits

• High Logic Density: 20,000 gates with 784 configurable logic blocks (CLBs) and 1,862 logic elements for complex design implementation
• Extensive Memory: 25,088 total RAM bits for on-chip data storage and buffering
• Flexible I/O: 113 I/O pins supporting various interface standards
• Industrial Temperature Range: Operates reliably from -40°C to 100°C (TJ) for harsh environments
• Compact Package: 144-TQFP (20x20mm) with exposed pad for enhanced thermal performance
• Wide Voltage Range: 3V to 3.6V supply voltage for flexible power design

Applications

This FPGA is well-suited for aerospace avionics, automotive electronics, industrial automation controllers, telecommunications infrastructure, medical device control systems, and legacy system support requiring long-term availability.

Quality & Traceability

As an authorized distributor, we provide full traceability documentation, quality certifications, and long-term lifecycle support for this component. All units are sourced directly from AMD or authorized channels with complete chain-of-custody documentation.

• XC4020XL-3HT144I.pdf
