AMD XC4020XL-3HT176I

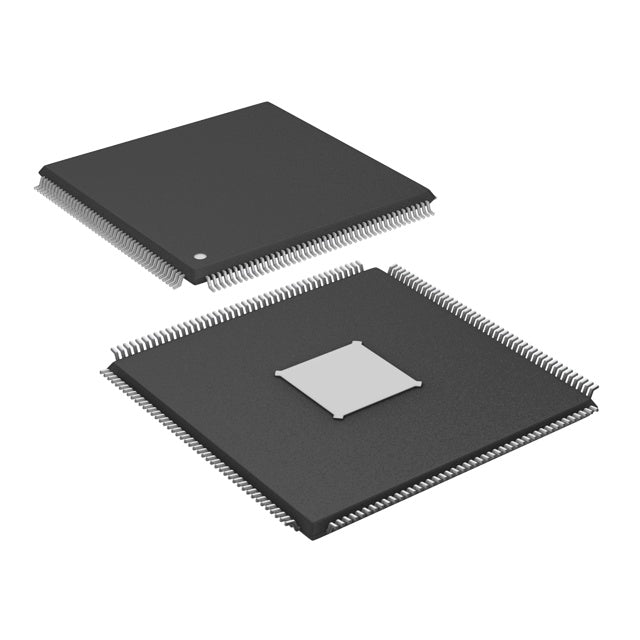

AMD XC4020XL-3HT176I Field-Programmable Gate Array

The XC4020XL-3HT176I is a high-performance FPGA from AMD's proven XC4000E/X series, delivering 20,000 gates of programmable logic in a compact 176-pin TQFP package. Engineered for demanding industrial, aerospace, automotive, telecommunications, and medical applications requiring long lifecycle support and exceptional reliability.

Key Features & Benefits

• 20,000 Gates - Substantial logic capacity for complex digital designs
• 145 I/O Pins - Extensive connectivity for interfacing with multiple peripherals
• 784 CLBs (Configurable Logic Blocks) - Flexible architecture for custom logic implementation
• 1,862 Logic Elements - High-density programmable resources
• 25,088 RAM Bits - Integrated memory for data buffering and storage
• Industrial Temperature Range - Operates reliably from -40°C to 100°C (TJ)
• Surface Mount Technology - Simplified PCB assembly and manufacturing
• 3V to 3.6V Supply - Low-power operation compatible with modern systems

Applications

This FPGA is ideal for aerospace flight control systems, automotive engine management, industrial automation controllers, telecommunications infrastructure, medical diagnostic equipment, and any application requiring configurable logic with extended temperature operation and long-term availability.

Quality & Traceability

As an authorized distributor, we provide full traceability documentation, certificates of conformance, and lifecycle support for this component. All units are sourced directly from AMD or authorized channels, ensuring authenticity and reliability for your critical applications.

• XC4020XL-3HT176I.pdf
