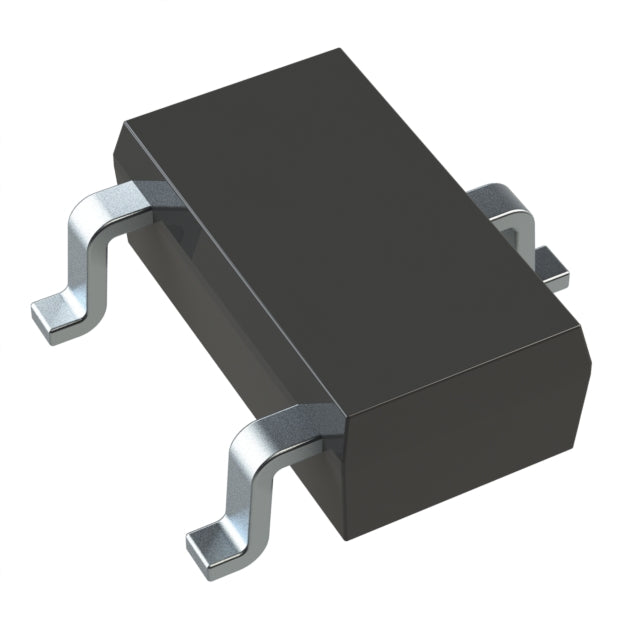

Torex Semiconductor Ltd XC6206P222MR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.59 | $0.59 |
| 15+ | $0.57 | $8.55 |
| 25+ | $0.56 | $14.00 |
| 50+ | $0.53 | $26.50 |
| 100+ | $0.47 | $47.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.71V @ 100mA |
| Current - Output | 120mA |
| Current - Quiescent (Iq) | 3 µA |
| Current - Supply (Max) | - |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| ROHS |  |
The Torex XC6206P222MR-G is a 120mA LDO regulator offering a fixed 2.2V output. Its standout feature is an ultra-low quiescent current of just 3 µA, making it one of the most power-efficient regulators for battery-powered applications. Housed in a standard SOT-23 package, it provides a reliable and compact solution for always-on devices.
- Exceptional Power Savings: 3 µA quiescent current is among the lowest in the industry, maximizing battery life.
- Reliable Output: Stable 2.2V output with 120mA capability for a wide range of low-power loads.
- Industry-Standard Package: SOT-23 package is easy to integrate and widely available.
- Cost-Effective: Simple design and proven technology offer a cost-efficient power solution.
Ultra-Low-Power IoT Nodes
The 3 µA quiescent current is ideal for battery-powered IoT sensors that spend most of their time in sleep mode, dramatically extending battery life.
Energy Harvesting Systems
With minimal current draw, this LDO is perfect for solar or vibration-powered devices, efficiently managing scarce energy to provide a stable 2.2V rail.
Remote Controls
Powers 2.2V logic in remote controls, ensuring long shelf life and reliable operation with minimal battery drain.
Portable Instruments
The SOT-23 package and low power consumption make it suitable for handheld meters and testers requiring a stable 2.2V supply.
Wearable Health Monitors
Supports continuous monitoring with minimal power draw, making it ideal for fitness trackers and medical patches.
Automotive Standby Circuits
Provides a stable 2.2V rail for always-on circuits in vehicles, with low quiescent current reducing battery drain when the engine is off.
- Q: What is the output voltage of the XC6206P222MR-G?
- A: The fixed output voltage is 2.2V.
- Q: What is the maximum output current?
- A: It can deliver up to 120mA.
- Q: What is the input voltage range?
- A: The input voltage range is from 2.2V up to the absolute maximum rating (typically 6V).
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 0.71V at a 100mA load.
- Q: What is the quiescent current?
- A: The quiescent current is extremely low at 3 µA.
- Q: What package is available?
- A: It comes in a standard SOT-23 package.
