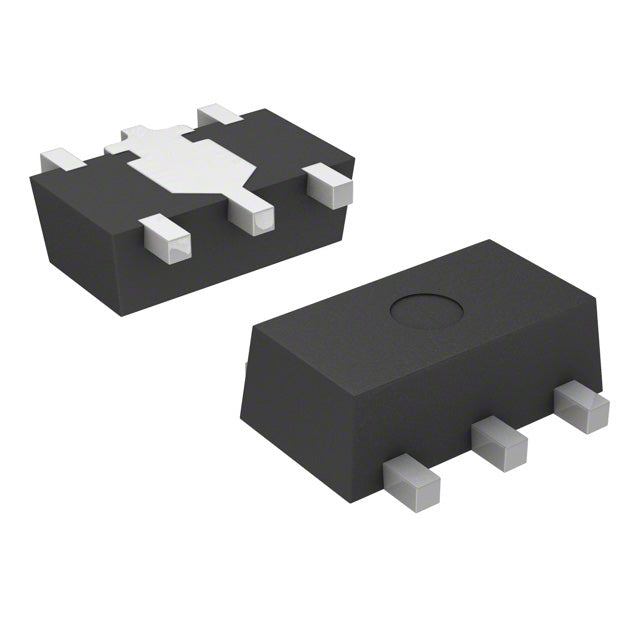

Torex Semiconductor Ltd XC6220A15BPR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.82 | $1.82 |
| 15+ | $0.41 | $6.15 |
| 25+ | $0.41 | $10.25 |
| 50+ | $0.38 | $19.00 |
| 100+ | $0.34 | $34.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.55V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.655V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 18 μA |
| Current - Supply (Max) | 108 μA |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-89-5/6 |
| Supplier Device Package | SOT-89-5 |
| ROHS |  |
The Torex XC6220A15BPR-G is a fixed-output linear regulator providing 1.55V at up to 1A. With a low 0.655V dropout and 18 μA quiescent current, it suits battery-powered precision electronics. The SOT-89-5 package offers a compact footprint, and 50dB PSRR ensures clean power delivery.
- Precision Output: Fixed 1.55V eliminates external resistor dividers, reducing component count.
- Low Power Loss: 0.655V dropout maximizes efficiency in low-voltage systems.
- Compact Design: SOT-89-5 package saves PCB space for dense layouts.
- Stable Operation: 50dB PSRR at 1kHz filters supply ripple effectively.
Precision Analog Circuits
The 1.55V output is ideal for biasing operational amplifiers or reference circuits requiring a non-standard voltage, with 50dB PSRR ensuring minimal noise.
Battery-Powered Handheld Tools
With 1A capability and low dropout, it powers motor controllers and displays in cordless screwdrivers or multimeters.
Wireless Communication Modules
Stable 1.55V rail for RF transceivers, reducing bit errors in Bluetooth or Zigbee modules.
LED Driver Bias Supply
Provides a clean bias voltage for LED driver ICs in portable lighting, maintaining consistent brightness.
Embedded Systems
Powers logic cores in FPGAs or microcontrollers that require 1.55V, with thermal shutdown protection.
Test & Measurement Equipment
Low quiescent current extends calibration battery life in portable oscilloscopes or signal generators.
- Q: What is the output voltage of the XC6220A15BPR-G?
- A: The fixed output voltage is 1.55V.
- Q: What is the maximum output current?
- A: It can deliver up to 1A of continuous current.
- Q: What is the input voltage range?
- A: The input voltage range is from 1.55V up to the absolute maximum rating (typically 6V, refer to datasheet).
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.655V at a 1A load.
- Q: What is the quiescent current?
- A: The quiescent current is a low 18 μA, ideal for battery-powered devices.
- Q: What package is available?
- A: It comes in a compact SOT-89-5 package.
