Torex Semiconductor Ltd XC6220A16BER-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.63 | $1.63 |
| 15+ | $0.38 | $5.70 |
| 25+ | $0.37 | $9.25 |
| 50+ | $0.35 | $17.50 |
| 100+ | $0.31 | $31.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.65V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.655V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 18 μA |
| Current - Supply (Max) | 108 μA |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

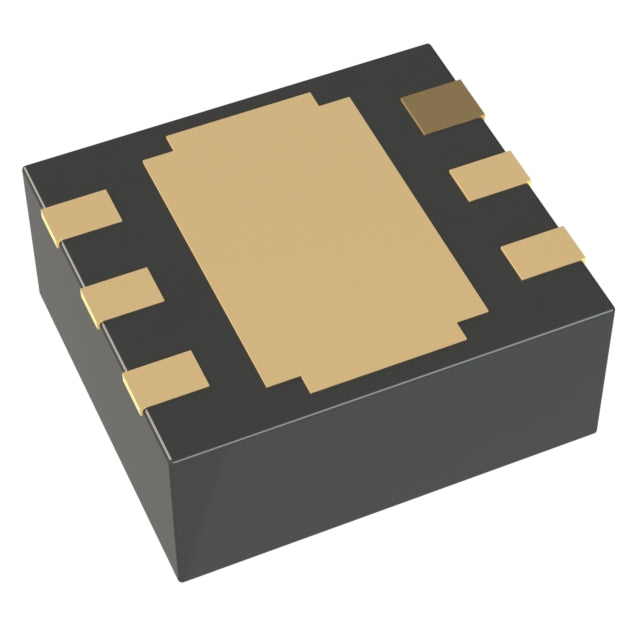

| Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | 6-USPC (1.8x2) |
| ROHS |  |
The Torex XC6220A16BER-G is a fixed-output LDO regulator providing a stable 1.65V at up to 1A. With an ultra-low 18 μA quiescent current and 0.655V dropout, it is optimized for battery-powered and low-voltage applications. The compact 6-USPC package and 50dB PSRR ensure reliable, noise-free performance.
- High Efficiency: Low 0.655V dropout at 1A minimizes power loss.
- Ultra-Low Quiescent Current: 18 μA extends battery life in standby mode.
- High Current Capability: 1A output supports demanding loads.
- Excellent PSRR: 50dB at 1kHz filters supply noise for clean power.
- Compact Package: 6-USPC (1.8x2) saves PCB space.
FPGA and CPLD Power Supplies
The 1.65V output with 1A current supports low-voltage programmable logic devices, while 50dB PSRR ensures stable operation.
Portable Test Equipment
Low quiescent current and precise 1.65V output make it ideal for oscilloscopes and signal generators in field use.
Wireless Sensor Networks
The 18 μA quiescent current extends battery life in distributed sensor nodes, while 1A supports radio transmission bursts.
Consumer Audio Devices
Stable 1.65V power for DACs and amplifiers in high-resolution portable audio players, with low noise for clear sound.
Industrial Process Controllers
With 1A output and robust regulation, it powers control loops and HMI displays in industrial automation.
Smart Lighting Systems
The compact package and high current support LED drivers and communication modules in smart lighting networks.
- Q: What is the output voltage of the XC6220A16BER-G?
- A: The fixed output voltage is 1.65V.
- Q: What is the maximum output current?
- A: It can deliver up to 1A of output current.
- Q: What is the input voltage range?
- A: The input voltage must be at least 1.65V for proper operation.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.655V at 1A load, providing good efficiency.
- Q: What is the quiescent current?
- A: The quiescent current is a low 18 μA, ideal for battery-powered devices.
- Q: What package is available?
- A: It comes in a 6-USPC (1.8x2) package, suitable for compact designs.
