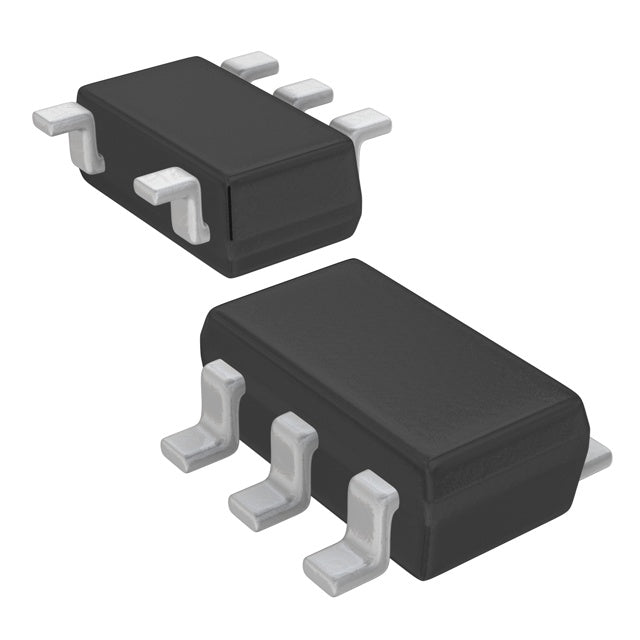

Torex Semiconductor Ltd XC6220A16BMR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.56 | $1.56 |
| 15+ | $0.36 | $5.40 |
| 25+ | $0.35 | $8.75 |
| 50+ | $0.33 | $16.50 |
| 100+ | $0.29 | $29.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.65V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.655V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 18 μA |
| Current - Supply (Max) | 108 μA |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-25 |
| ROHS |  |
The Torex XC6220A16BMR-G is a fixed-output linear regulator designed to provide a precise 1.65V supply. It supports up to 1A of load current with a low dropout voltage of 0.655V at full load, making it highly efficient for battery-operated devices. The regulator features an ultra-low quiescent current of 18 μA, significantly reducing power consumption in idle and sleep modes. Packaged in a compact SOT-25, it delivers excellent power supply rejection of 50dB at 1kHz, ensuring a clean and stable output for sensitive electronics.
- Efficient Power Conversion: Low 0.655V dropout at 1A reduces power loss and heat generation.
- Ultra-Low Power Consumption: 18 μA quiescent current extends battery life in portable devices.
- Stable Output: 50dB PSRR at 1kHz filters noise, providing a clean 1.65V rail for sensitive components.
- Compact Design: SOT-25 package saves board space in space-constrained applications.
FPGA Core Power
Many low-power FPGAs require a 1.65V core supply. This LDO provides a stable, low-noise 1.65V rail with up to 1A current, ensuring reliable logic operation.
Precision Analog Circuits
The 50dB PSRR at 1kHz and low quiescent current make it ideal for powering precision op-amps and ADCs, maintaining signal accuracy in measurement equipment.
Battery-Powered Handheld Tools
With a low dropout of 0.655V, it efficiently regulates from a partially discharged battery, extending the usable runtime of handheld diagnostic tools.
Wireless Communication Modules
For RF transceivers needing a clean 1.65V supply, this regulator minimizes voltage ripple, improving transmission and reception quality.
Automotive Sensor Interfaces
In automotive electronics, the XC6220A16BMR-G provides a stable 1.65V reference for sensor signal conditioning, ensuring accurate data acquisition.
Portable Audio Players
Its low noise characteristics help reduce background hiss in audio circuits, delivering cleaner sound from portable media players.
- Q: What is the output voltage of the XC6220A16BMR-G?
- A: The fixed output voltage is 1.65V.
- Q: What is the maximum output current?
- A: It can deliver up to 1A of continuous current.
- Q: What is the input voltage range?
- A: The input voltage range starts from 1.65V; the maximum input voltage is not specified in the provided data.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.655V at a 1A load.
- Q: What is the quiescent current?
- A: The quiescent current is a low 18 μA, making it suitable for battery-powered devices.
- Q: What package is available?
- A: It is available in the compact SOT-25 package.
