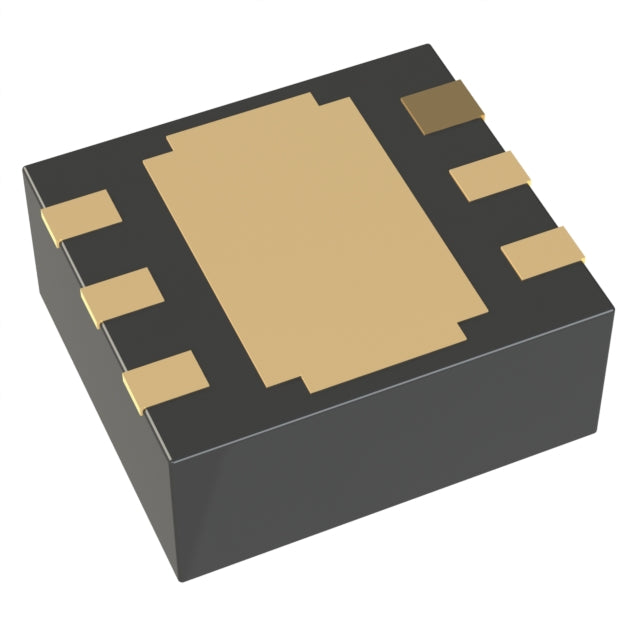

Torex Semiconductor Ltd XC6220A18BER-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.63 | $1.63 |
| 15+ | $0.38 | $5.70 |
| 25+ | $0.37 | $9.25 |
| 50+ | $0.35 | $17.50 |
| 100+ | $0.31 | $31.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.85V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.655V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 18 μA |
| Current - Supply (Max) | 108 μA |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | 6-USPC (1.8x2) |
| ROHS |  |
The Torex XC6220A18BER-G is a fixed-output LDO linear regulator that provides a stable 1.85V supply. With a maximum output current of 1A and a low dropout voltage of 0.655V at full load, it is designed for high-efficiency power management. The device features an ultra-low quiescent current of 18 μA and a PSRR of 50dB at 1kHz, making it suitable for noise-sensitive and battery-powered applications. Its compact 6-USPC package is ideal for space-constrained designs.
- Optimized for Precision: 1.85V output is ideal for high-accuracy analog and digital circuits.
- High Efficiency: Low dropout voltage minimizes power loss, improving overall system efficiency.
- Low Noise Operation: 50dB PSRR at 1kHz ensures minimal ripple on the output.
- Compact and Lightweight: 6-USPC package reduces PCB footprint, ideal for portable devices.
DDR Memory Termination
The 1.85V output is close to DDR termination voltages, providing a stable supply for memory bus termination resistors in computing systems.
High-Performance ADCs/DACs
Delivers a clean, low-noise 1.85V rail for precision converters, improving signal-to-noise ratio in data acquisition systems.
Portable Gaming Consoles
Supports the power needs of processors and graphics chips in handheld gaming devices, with low quiescent current for longer playtime.
Smart Wearables
Ideal for smartwatches and fitness trackers, offering a compact solution with high current for displays and sensors.
Networking Equipment
Provides stable power for routers and switches, ensuring reliable data transmission in always-on devices.
LED Drivers
Can be used to power LED driver ICs, providing a stable input voltage for consistent brightness control.
- Q: What is the output voltage of the XC6220A18BER-G?
- A: The fixed output voltage is 1.85V.
- Q: What is the maximum output current?
- A: It can deliver up to 1A of continuous output current.
- Q: What is the input voltage range?
- A: The input voltage range is from 1.85V up to the absolute maximum rating (typically 6V, refer to datasheet).
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.655V at a 1A load.
- Q: What is the quiescent current?
- A: The quiescent current is a low 18 μA, making it suitable for battery-powered devices.
- Q: What package is available?
- A: It comes in a compact 6-USPC (1.8x2) package.
