Torex Semiconductor Ltd XC6220A191ER-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.63 | $1.63 |
| 15+ | $0.38 | $5.70 |
| 25+ | $0.37 | $9.25 |
| 50+ | $0.35 | $17.50 |
| 100+ | $0.31 | $31.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.9V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.655V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 18 μA |
| Current - Supply (Max) | 108 μA |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

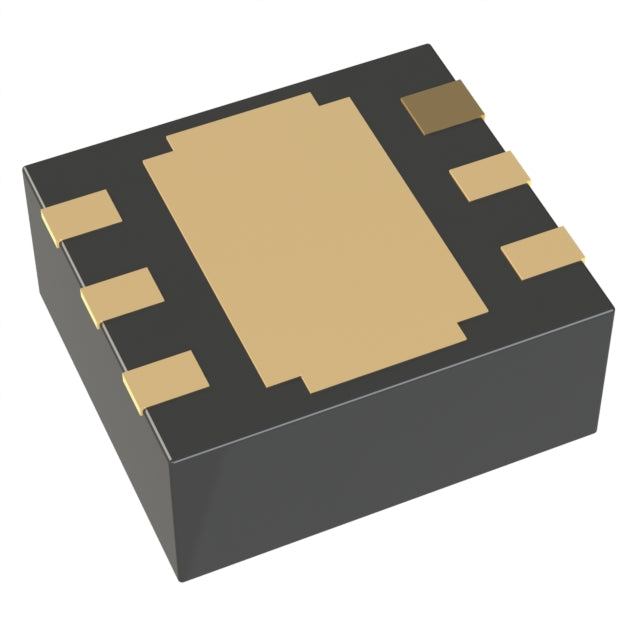

| Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | 6-USPC (1.8x2) |
| ROHS |  |
The Torex XC6220A191ER-G is a fixed-output LDO linear regulator offering a stable 1.9V output. It is capable of delivering up to 1A of current with a low dropout voltage of 0.655V at full load. The device features an ultra-low quiescent current of 18 μA and a PSRR of 50dB at 1kHz, ensuring efficient and noise-free operation. Its compact 6-USPC package makes it suitable for a wide range of portable and space-constrained applications.
- Versatile Voltage Level: 1.9V output is compatible with various logic families and processors.
- Low Power Loss: Dropout voltage of 0.655V at 1A ensures efficient operation even with low input margins.
- Superior Noise Rejection: 50dB PSRR at 1kHz provides a clean output for sensitive electronics.
- Extended Battery Life: 18 μA quiescent current is perfect for battery-powered applications.
Advanced Microprocessor Cores
The 1.9V output is suitable for powering the core voltage of certain microprocessors and SoCs, providing up to 1A for demanding computational tasks.
Portable Audio Players
Delivers clean, stable power to audio DACs and amplifiers, enhancing sound quality with low noise and ripple.
GPS Receivers
Provides a stable 1.9V rail for GPS modules, ensuring accurate positioning with minimal interference from power supply noise.
Smart Home Devices
Ideal for smart speakers and displays, offering efficient power conversion with low standby power consumption.
Battery Management Systems
Can be used to power monitoring circuits in BMS, ensuring accurate voltage and current measurements.
Robotics
Supplies stable power to control boards and sensors in robotic systems, ensuring reliable operation in dynamic environments.
- Q: What is the output voltage of the XC6220A191ER-G?
- A: The fixed output voltage is 1.9V.
- Q: What is the maximum output current?
- A: It can deliver up to 1A of continuous output current.
- Q: What is the input voltage range?
- A: The input voltage range is from 1.9V up to the absolute maximum rating (typically 6V, refer to datasheet).
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.655V at a 1A load.
- Q: What is the quiescent current?
- A: The quiescent current is a low 18 μA, making it suitable for battery-powered devices.
- Q: What package is available?
- A: It comes in a compact 6-USPC (1.8x2) package.
