Torex Semiconductor Ltd XC6220A251ER-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.63 | $1.63 |
| 15+ | $0.38 | $5.70 |
| 25+ | $0.37 | $9.25 |
| 50+ | $0.35 | $17.50 |
| 100+ | $0.31 | $31.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.655V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 18 μA |
| Current - Supply (Max) | 108 μA |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

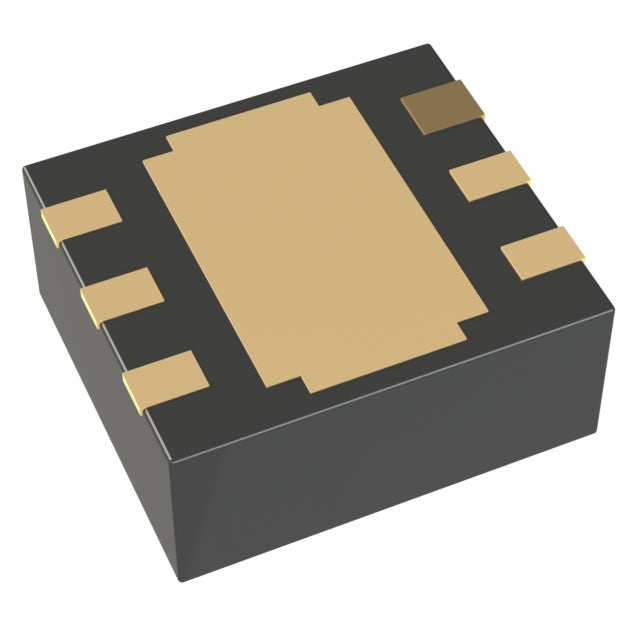

| Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | 6-USPC (1.8x2) |
| ROHS |  |
The Torex XC6220A251ER-G is a fixed 2.5V LDO regulator capable of delivering 1A with a low dropout of 0.655V. Its 18 μA quiescent current and 50dB PSRR make it an excellent choice for noise-sensitive and battery-operated devices. The compact 6-USPC package enables high-density PCB layouts without compromising performance.
- Precise Regulation: Fixed 2.5V output ensures stable voltage for critical digital and analog circuits.
- High Efficiency: Low dropout and quiescent current reduce power loss, extending battery life.
- Space-Saving Design: 6-USPC package is ideal for compact consumer electronics.
- Noise Immunity: 50dB PSRR at 1kHz filters supply noise, improving system reliability.
- Thermal Performance: Capable of 1A output with robust thermal characteristics for continuous operation.
FPGA and DSP Power Supplies
The 2.5V fixed output and 1A current capability make it suitable for powering core logic of FPGAs and DSPs in embedded systems.
Portable Instrumentation
Low quiescent current and stable output ensure accurate readings in handheld multimeters and field test equipment.
Wireless Modules
With 50dB PSRR, it provides clean power to Wi-Fi and Bluetooth modules, reducing transmission errors.
Smart Home Devices
Ideal for smart thermostats and security cameras, offering efficient power conversion from battery or USB sources.
LED Drivers
Can be used as a constant voltage source for low-power LED lighting applications, ensuring consistent brightness.
Server and Networking Gear
Provides reliable 2.5V rail for auxiliary circuits in networking switches and routers.
- Q: What is the output voltage of the XC6220A251ER-G?
- A: This LDO provides a fixed 2.5V output voltage.
- Q: What is the maximum output current?
- A: It can supply up to 1A of continuous output current.
- Q: What is the input voltage range?
- A: The recommended input voltage is 2.5V, suitable for low-voltage power rails.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.655V at 1A load, allowing efficient regulation with low headroom.
- Q: What is the quiescent current?
- A: The quiescent current is only 18 μA, ideal for power-sensitive applications.
- Q: What package is available?
- A: It is available in a 6-USPC (1.8x2) package.
