Torex Semiconductor Ltd XC6220A311ER-G
Regular price
$1.63
Regular price
$0.41
Sale price
$1.63
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.63 | $1.63 |
| 15+ | $0.38 | $5.70 |
| 25+ | $0.37 | $9.25 |
| 50+ | $0.35 | $17.50 |
| 100+ | $0.31 | $31.00 |
| N+ | $0.06 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.1V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.655V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 18 μA |
| Current - Supply (Max) | 108 μA |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

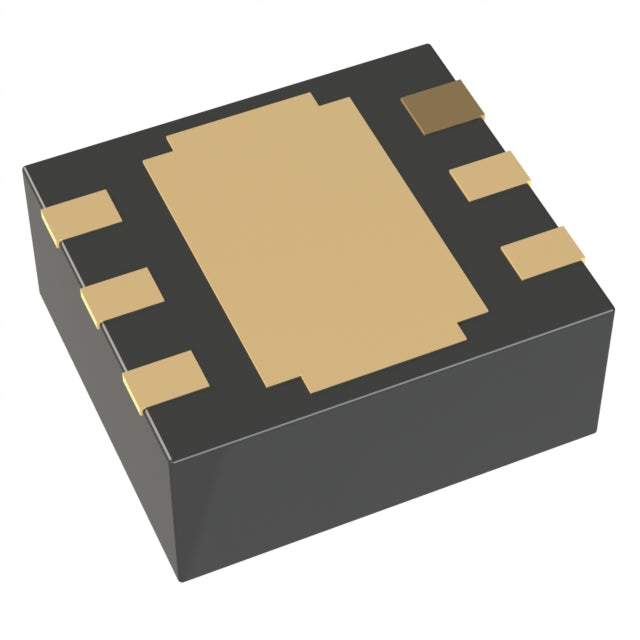

| Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | 6-USPC (1.8x2) |
| ROHS |  |
The Torex XC6220A311ER-G is a fixed-output LDO regulator providing a stable 3.1V at up to 1A. With a low quiescent current of 18 μA and 50dB PSRR, it ensures efficient, noise-free operation. The 6-USPC package is ideal for space-constrained applications.
- Extended Battery Life: Ultra-low 18 μA quiescent current.
- High Current Capacity: 1A output for demanding loads.
- Low Noise: 50dB PSRR at 1kHz for sensitive circuits.
- Compact Design: 6-USPC (1.8x2) package saves space.
3.3V to 3.1V Conversion
Ideal for powering 3.1V logic from a 3.3V rail with minimal power loss.
Battery-Powered Wearables
18 μA quiescent current ensures long battery life in fitness trackers and smartwatches.
Audio Amplifiers
50dB PSRR at 1kHz reduces hum and noise in audio circuits.
Automotive Sensors
Stable 3.1V output for pressure and temperature sensors in vehicles.
Portable Instruments
High current and low dropout support multimeters and oscilloscopes.
Communication Modules
Clean power for GSM/LTE modules, improving transmission quality.
- Q: What is the output voltage of the XC6220A311ER-G?
- A: The fixed output voltage is 3.1V.
- Q: What is the maximum output current?
- A: It can deliver up to 1A of continuous current.
- Q: What is the input voltage range?
- A: The input voltage is specified at 3.1V (typical operating point).
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.655V at a 1A load.
- Q: What is the quiescent current?
- A: The quiescent current is a low 18 μA.
- Q: What package is available?
- A: It comes in a compact 6-USPC (1.8x2) package.
Base Product Number ：
XC6220A311E
