Torex Semiconductor Ltd XC6220A341ER-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.63 | $1.63 |
| 15+ | $0.38 | $5.70 |
| 25+ | $0.37 | $9.25 |
| 50+ | $0.35 | $17.50 |
| 100+ | $0.31 | $31.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.4V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.655V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 18 μA |
| Current - Supply (Max) | 108 μA |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

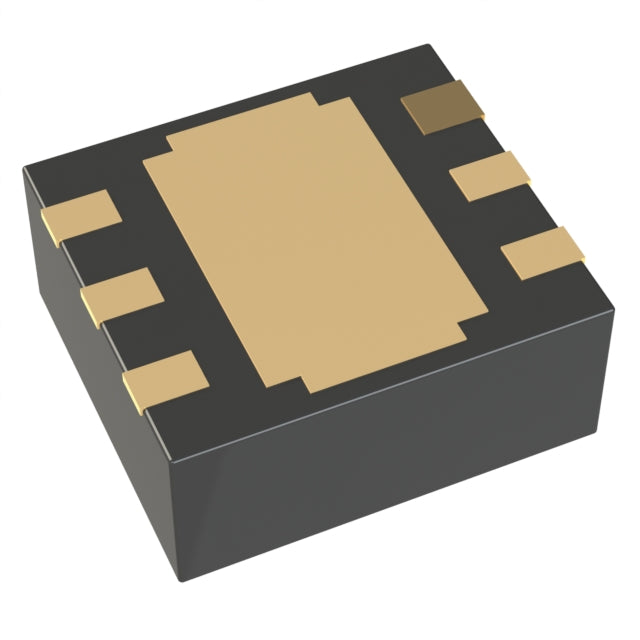

| Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | 6-USPC (1.8x2) |
| ROHS |  |
The Torex XC6220A341ER-G is a fixed-output LDO regulator providing 3.4V at up to 1A. Its low dropout voltage of 0.655V at full load and 50dB PSRR at 1kHz ensure clean, efficient power delivery. The 18 μA quiescent current makes it suitable for battery-operated devices, while the compact 6-USPC package fits tight layouts.
- High Efficiency: Low dropout reduces power loss, improving thermal performance in compact designs.
- Stable Output: Fixed 3.4V with tight regulation ensures consistent performance across load variations.
- Low Noise: 50dB PSRR at 1kHz minimizes supply ripple for audio and RF applications.
- Space-Saving: 6-USPC package (1.8x2mm) is ideal for miniaturized electronics.
DDR Memory Termination
The 3.4V output and 1A capability provide a stable rail for DDR termination, reducing signal integrity issues.
Portable Test Equipment
Low quiescent current extends battery life in handheld multimeters, while 1A supports backlight drivers.
Wireless Charging Modules
High PSRR filters switching noise from power transmitters, ensuring clean power for control ICs.
LED Lighting Controllers
Provides a regulated 3.4V supply for microcontroller-based LED drivers in smart lighting systems.
Security Cameras
Stable output powers image sensors and processors, with 1A handling motorized pan-tilt mechanisms.
Audio Amplifiers
The low-noise output and 50dB PSRR reduce hum and interference in portable speakers.
- Q: What is the output voltage?
- A: The XC6220A341ER-G outputs a fixed 3.4V.
- Q: What is the maximum current?
- A: It can source up to 1A of output current.
- Q: What is the input voltage range?
- A: The input voltage range is up to 3.4V (designed for 3.3V systems with headroom).
- Q: What is the dropout voltage?
- A: Dropout is 0.655V at 1A, allowing operation close to the output voltage.
- Q: What is the quiescent current?
- A: Quiescent current is 18 μA, ideal for always-on applications.
- Q: What package is available?
- A: It is offered in the 6-USPC (1.8x2) package.
