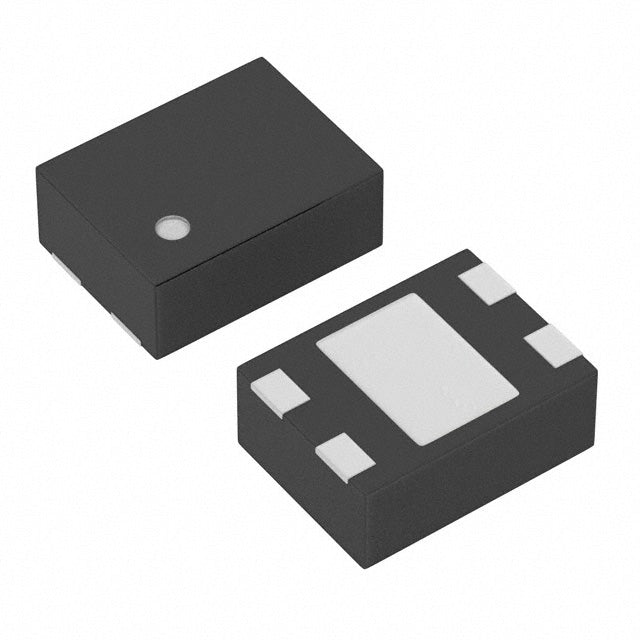

Torex Semiconductor Ltd XC6221A312GR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.52 | $0.52 |
| 15+ | $0.51 | $7.65 |
| 25+ | $0.50 | $12.50 |
| 50+ | $0.47 | $23.50 |
| 100+ | $0.41 | $41.00 |
| N+ | $0.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.1V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.14V @ 100mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 50 µA |
| Current - Supply (Max) | - |
| PSRR | 70dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-UDFN Exposed Pad |
| Supplier Device Package | 4-USP (1.2x1.6) |
| ROHS |  |
The XC6221A312GR-G from Torex Semiconductor is a high-performance fixed 3.1V LDO regulator designed for ultra-portable applications. It delivers up to 200mA with an exceptionally low quiescent current of just 50 µA, making it ideal for battery-powered devices. The low dropout voltage of 0.14V at 100mA ensures efficient operation. With 70dB PSRR at 1kHz, it provides clean, stable power for noise-sensitive circuits. Its ultra-compact 4-USP (1.2x1.6mm) package is perfect for space-constrained designs.
- Ultra-Low Quiescent Current: 50 µA extends battery life in always-on IoT and wearable devices.
- Low Dropout Voltage: 0.14V at 100mA allows operation close to battery end-of-life.
- High Ripple Rejection: 70dB at 1kHz ensures clean power for RF and audio circuits.
- Ultra-Compact Package: 4-USP (1.2x1.6mm) saves critical board space in miniaturized products.
Wearable Health Monitors
The 50 µA quiescent current and 200mA output are perfect for powering Bluetooth SoCs and sensor hubs in smartwatches and fitness bands, maximizing battery life.
IoT Sensor Nodes
For always-on environmental sensors, the ultra-low dropout of 0.14V at 100mA ensures stable operation even as the battery voltage depletes.
Portable Audio Players
The 70dB PSRR at 1kHz effectively suppresses digital noise from the processor, delivering clean power to audio DACs and headphone amplifiers.
Wireless Earbuds
The tiny 1.2x1.6mm package fits into space-constrained earbud designs while providing stable 3.1V to the RF transceiver and audio codec.
Medical Implantable Devices
Low quiescent current and high accuracy make this regulator suitable for powering low-power medical sensors and telemetry circuits.
Smart Home Sensors
In battery-powered door/window sensors, the low dropout extends operational life by utilizing more of the battery capacity.
- Q: What is the output voltage of the XC6221A312GR-G?
- A: This LDO provides a fixed 3.1V output voltage.
- Q: What is the maximum output current?
- A: It can supply up to 200mA of continuous output current.
- Q: What is the input voltage range?
- A: The input voltage must be at least 3.1V plus the dropout voltage; the maximum input is not specified in the provided data.
- Q: What is the dropout voltage?
- A: The dropout voltage is very low at 0.14V at 100mA load, making it efficient for battery applications.
- Q: What is the quiescent current?
- A: The quiescent current is extremely low at 50 µA, ideal for power-sensitive portable devices.
- Q: What package is available?
- A: It comes in a 4-USP package measuring 1.2x1.6mm, which is ultra-compact.
