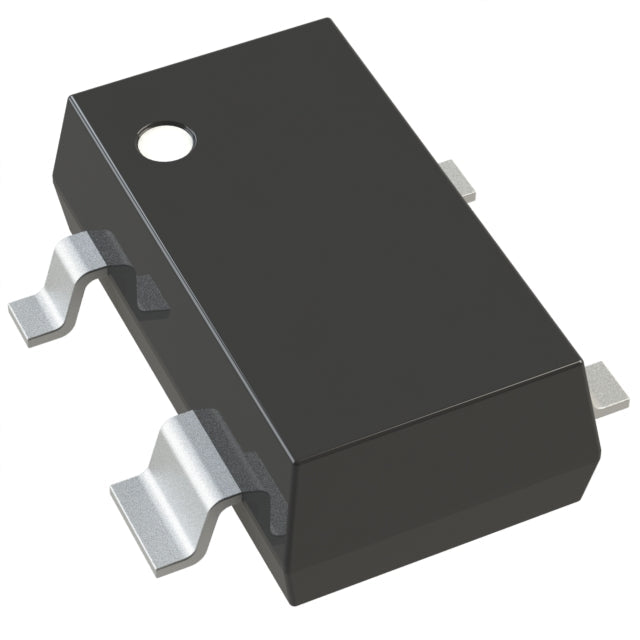

Torex Semiconductor Ltd XC6221A312NR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.78 | $0.78 |
| 15+ | $0.18 | $2.70 |
| 25+ | $0.18 | $4.50 |
| 50+ | $0.17 | $8.50 |
| 100+ | $0.15 | $15.00 |
| N+ | $0.03 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.1V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.14V @ 100mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 50 µA |
| Current - Supply (Max) | - |
| PSRR | 70dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-82 |
| Supplier Device Package | SSOT-24 |
| ROHS |  |
The Torex XC6221A312NR-G is a reliable 200mA LDO regulator providing a fixed 3.1V output. With a low quiescent current of 50µA and dropout voltage of 140mV at 100mA, it is optimized for battery-powered applications. Its 70dB PSRR at 1kHz delivers clean power, making it suitable for noise-sensitive circuits. The SSOT-24 package ensures a compact footprint for modern electronic designs.
- Optimized for Battery Life: 50µA quiescent current reduces idle power consumption.
- Stable 3.1V Rail: Fixed output ensures consistent performance for logic and sensor circuits.
- High Ripple Rejection: 70dB PSRR at 1kHz minimizes supply noise interference.
- Low Dropout: 140mV dropout at 100mA supports operation from low-voltage sources.
Digital Cameras and Imaging
The 3.1V output powers image sensors and DSPs, with 70dB PSRR reducing noise that could affect image quality.
GPS Receivers
Stable 3.1V supply for GPS modules ensures consistent satellite signal processing, even with fluctuating battery voltage.
Wireless Charging Receivers
Low dropout allows efficient regulation from a 3.3V rectified output, powering the control circuitry in wireless charging pads.
Portable Gaming Consoles
200mA capability supports the processor and display logic, while low quiescent current extends playtime between charges.
Smart Meters
Ideal for utility meters, the 50µA quiescent current ensures minimal power draw during idle periods, meeting strict energy regulations.
LED Display Drivers
Provides a stable 3.1V logic supply for LED matrix drivers, ensuring consistent brightness control in signage.
- Q: What is the output voltage of the XC6221A312NR-G?
- A: The fixed output voltage is 3.1V.
- Q: What is the maximum output current?
- A: It can deliver up to 200mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet for full specifications.
- Q: What is the dropout voltage?
- A: The dropout voltage is 140mV (0.14V) at 100mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 50µA.
- Q: What package is available?
- A: It comes in the SSOT-24 package.
