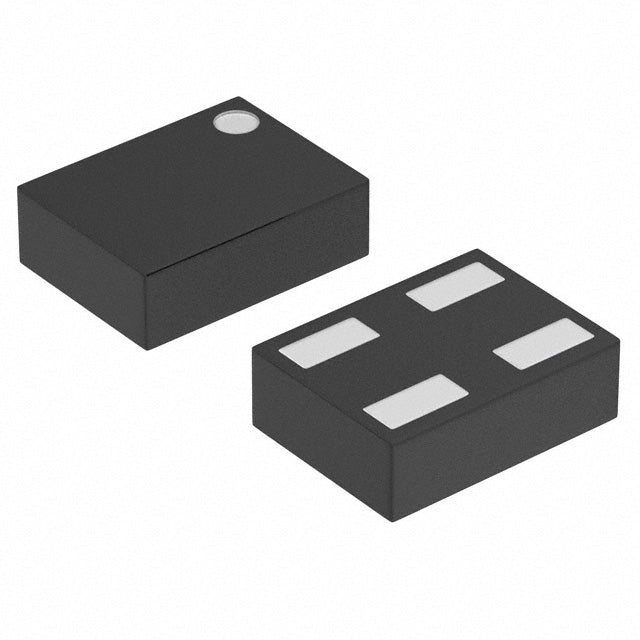

Torex Semiconductor Ltd XC6221B2027R-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.82 | $0.82 |
| 15+ | $0.19 | $2.85 |
| 25+ | $0.19 | $4.75 |
| 50+ | $0.18 | $9.00 |
| 100+ | $0.16 | $16.00 |
| N+ | $0.03 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.195V @ 100mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 50 µA |
| Current - Supply (Max) | - |
| PSRR | 70dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-XDFN |
| Supplier Device Package | 4-USPN (0.90x1.2) |
| ROHS |  |
The Torex XC6221B2027R-G is a 200mA LDO linear regulator offering a fixed 2.0V output. With an ultra-low 50µA quiescent current and 70dB PSRR, it provides clean, efficient power for a wide range of portable and industrial applications. The compact 4-USPN package is perfect for space-limited designs.
- Lowest Dropout: 0.195V at 100mA maximizes efficiency.
- Low Power: 50µA quiescent current for battery conservation.
- High PSRR: 70dB at 1kHz for noise-sensitive circuits.
- Compact Size: 4-USPN (0.90x1.2) package.
Logic Level Conversion
Provides a stable 2.0V rail for mixed-voltage logic systems, ensuring reliable signal integrity.
Portable Consumer Electronics
Ideal for e-readers, portable gaming devices, and digital cameras requiring efficient power management.
Wireless Charging Receivers
Low dropout of 0.195V allows efficient regulation from rectified wireless power.
Automotive Electronics
Stable output for sensors and control units in automotive environments with varying supply voltages.
Test and Measurement Equipment
High PSRR ensures accurate readings in sensitive measurement instruments.
Energy Harvesting Systems
Ultra-low quiescent current makes it suitable for energy-constrained harvesting applications.
- Q: What is the output voltage of the XC6221B2027R-G?
- A: The fixed output voltage is 2.0V.
- Q: What is the maximum output current?
- A: The maximum output current is 200mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.195V at 100mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 50 µA.
- Q: What package is available?
- A: The device comes in a 4-USPN (0.90x1.2) package.
XC6221B2027R-G.pdf
- Q: What is the output voltage of the XC6221B2027R-G?
- A: The fixed output voltage is 2.0V.
- Q: What is the maximum output current?
- A: The maximum output current is 200mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.195V at 100mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 50 µA.
- Q: What package is available?
- A: The device comes in a 4-USPN (0.90x1.2) package.
