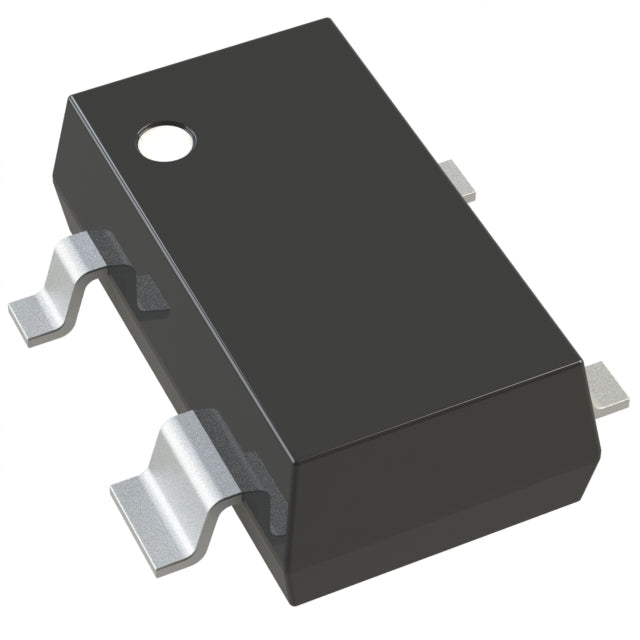

Torex Semiconductor Ltd XC6221B202NR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.78 | $0.78 |
| 15+ | $0.18 | $2.70 |
| 25+ | $0.18 | $4.50 |
| 50+ | $0.17 | $8.50 |
| 100+ | $0.15 | $15.00 |
| N+ | $0.03 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.195V @ 100mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 50 µA |
| Current - Supply (Max) | - |
| PSRR | 70dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-82 |
| Supplier Device Package | SSOT-24 |
| ROHS |  |
The XC6221B202NR-G is a 200mA LDO from Torex, delivering a fixed 2.0V output. Its 50 µA quiescent current and 70dB PSRR make it an excellent choice for battery-powered and noise-sensitive applications. The SSOT-24 package supports compact, high-density PCB layouts.
- Ultra-Low Quiescent Current: 50 µA extends battery life in portable devices.
- High PSRR: 70dB at 1kHz ensures clean output for analog and RF circuits.
- Very Low Dropout: 0.195V at 100mA maximizes headroom.
- Compact SSOT-24: Ideal for miniaturized electronics.
2.0V Digital Circuits
Provides a precise 2.0V rail for legacy and specialized logic, with very low dropout for efficient conversion from 2.5V sources.
Sensor Conditioning
Clean 2.0V supply for bridge sensors and op-amps, with 70dB PSRR minimizing interference.
Portable GPS Modules
Stable power for GPS receivers, ensuring reliable satellite signal acquisition.
Smart Cards and Readers
Powers smart card interface ICs with low noise and stable voltage.
Test Equipment
Provides reference voltage for calibration circuits in portable testers.
Wearable Fitness Trackers
Low quiescent current extends battery life in always-on activity monitors.
- Q: What is the output voltage?
- A: Fixed 2.0V output.
- Q: What is the maximum current?
- A: 200mA.
- Q: What is the input voltage?
- A: 2.0V typical.
- Q: What is the dropout?
- A: 0.195V at 100mA.
- Q: What is the quiescent current?
- A: 50 µA.
- Q: What package?
- A: SSOT-24.
