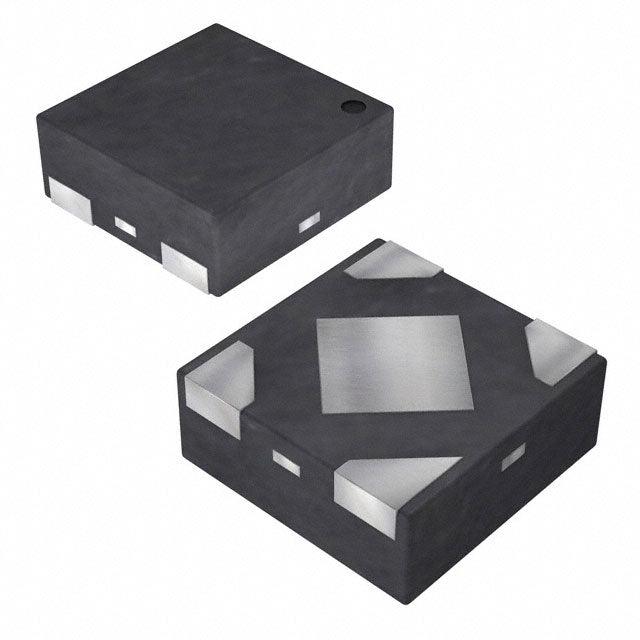

Torex Semiconductor Ltd XC6223T2519R-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.54 | $0.54 |
| 15+ | $0.52 | $7.80 |
| 25+ | $0.51 | $12.75 |
| 50+ | $0.48 | $24.00 |
| 100+ | $0.43 | $43.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 80dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-XDFN Exposed Pad |
| Supplier Device Package | USPQ-4B03 |
| ROHS |  |
The XC6223T2519R-G from Torex Semiconductor is a high-performance 2.5V fixed-output LDO regulator capable of delivering 300mA. Its low dropout voltage of 0.35V at full load and excellent 80dB PSRR at 1kHz make it suitable for noise-sensitive applications. The compact USPQ-4B03 package is ideal for space-constrained designs.
- High Ripple Rejection: 80dB PSRR at 1kHz ensures clean, stable output for sensitive analog and RF circuits.
- Low Dropout: 0.35V dropout at 300mA maximizes efficiency in battery-powered systems with tight voltage margins.
- Compact Footprint: USPQ-4B03 package saves PCB space for miniaturized portable devices.
- Stable 2.5V Output: Fixed output eliminates external resistor divider, simplifying design and improving accuracy.
Portable Battery-Powered Devices
The 2.5V output and 300mA capability make it ideal for powering low-voltage digital cores in wearables and IoT sensors, where the 220µA quiescent current balances efficiency with stable operation.
RF and Wireless Modules
With 80dB PSRR at 1kHz, this LDO effectively filters power supply noise, ensuring clean voltage for RF transceivers and improving signal integrity in Bluetooth and Zigbee modules.
Camera Sensor Power Supply
Image sensors require low-noise, stable rails. The XC6223T2519R-G provides a regulated 2.5V output with high ripple rejection, reducing artifacts in captured images.
Audio Codec and DAC Circuits
Analog audio circuits are sensitive to supply noise. The high PSRR of this regulator minimizes hum and interference, preserving audio fidelity in portable media players.
Industrial Sensor Interfaces
For 3.3V to 2.5V conversion in industrial sensor nodes, this LDO offers reliable dropout performance (0.35V @ 300mA) and stable output across temperature variations.
Metering and Measurement Equipment
Precision measurement devices benefit from the low output noise and tight regulation, ensuring accurate ADC readings in portable multimeters and data loggers.
- Q: What is the output voltage of the XC6223T2519R-G?
- A: The fixed output voltage is 2.5V.
- Q: What is the maximum output current?
- A: It can deliver up to 300mA.
- Q: What is the input voltage range?
- A: The input voltage range is 2.5V to 6.0V (based on typical LDO operation; verify in datasheet).
- Q: What is the dropout voltage?
- A: Dropout voltage is 0.35V at 300mA output.
- Q: What is the quiescent current?
- A: Quiescent current is 220µA.
- Q: What package is available?
- A: It comes in the USPQ-4B03 package.
