Torex Semiconductor Ltd XC6229D3411R-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.52 | $0.52 |
| 15+ | $0.51 | $7.65 |
| 25+ | $0.50 | $12.50 |
| 50+ | $0.47 | $23.50 |
| 100+ | $0.41 | $41.00 |
| N+ | $0.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.4V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.26V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 80dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

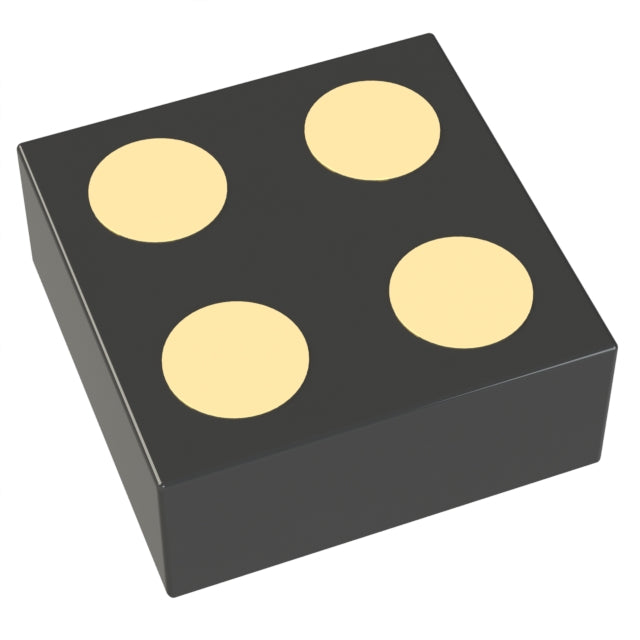

| Package / Case | 4-XFLGA |
| Supplier Device Package | LGA-4B01 |
| ROHS |  |
The XC6229D3411R-G is a 300mA LDO regulator from Torex Semiconductor with a fixed 3.4V output. It features excellent 80dB PSRR at 1kHz, making it perfect for noise-sensitive analog and RF applications. The dropout voltage is just 0.26V at full load, and quiescent current is 220µA. Housed in a compact LGA-4B01 package, it balances performance with space efficiency.
- Superior Noise Rejection: 80dB PSRR at 1kHz ensures clean output for sensitive circuits.
- High Current Capacity: 300mA supports a wide range of peripherals.
- Low Dropout: 0.26V at 300mA maximizes usable battery range.
- Compact LGA Package: Ideal for miniaturized PCB designs.
Smartphone Power Management
300mA output and 80dB PSRR at 1kHz provide clean power for camera modules and display drivers.
Portable Audio Equipment
High PSRR minimizes audible noise from switching regulators in DAC and amplifier circuits.
GPS Receivers
Stable 3.4V rail with low noise improves satellite signal acquisition sensitivity.
Bluetooth Modules
Reliable 3.4V supply for BLE SoCs, ensuring consistent RF performance.
Digital Cameras
Supports image sensor and processor power with low dropout from 3.7V Li-ion batteries.
Industrial Control Systems
LGA package offers robust thermal performance for 24/7 operation.
- Q: What is the output voltage?
- A: Fixed 3.4V output.
- Q: What is the maximum current?
- A: 300mA output current capability.
- Q: What is the input voltage range?
- A: Operating input is 3.4V (typical).
- Q: What is the dropout voltage?
- A: 0.26V at full 300mA load.
- Q: What is the quiescent current?
- A: 220µA quiescent current.
- Q: What package is used?
- A: LGA-4B01 package.
