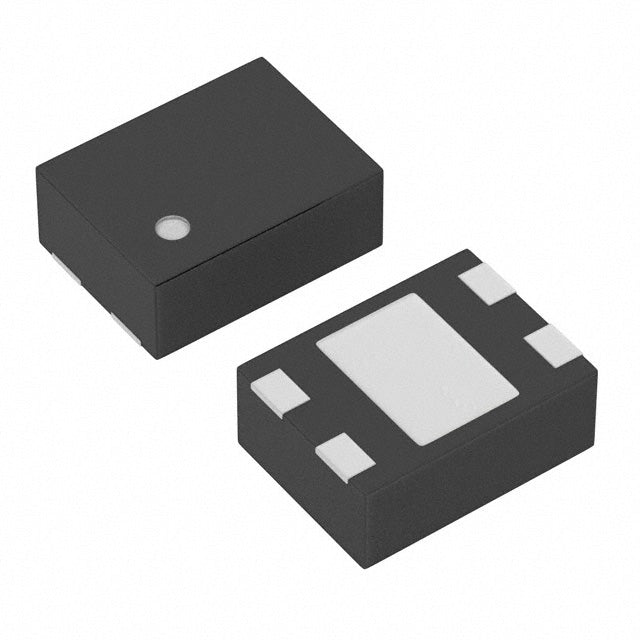

Torex Semiconductor Ltd XC6233H121GR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.63 | $0.63 |
| 15+ | $0.15 | $2.25 |
| 25+ | $0.14 | $3.50 |
| 50+ | $0.14 | $7.00 |
| 100+ | $0.12 | $12.00 |
| N+ | $0.02 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.95V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 87 µA |
| Current - Supply (Max) | - |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-UDFN Exposed Pad |
| Supplier Device Package | 4-USP (1.2x1.6) |
| ROHS |  |
The XC6233H121GR-G from Torex Semiconductor is a fixed 1.2V LDO regulator offering 200mA output current. It features a low quiescent current of 87 µA and high PSRR of 75dB at 1kHz. The ultra-compact 4-USP package (1.2x1.6mm) is designed for the most space-constrained portable and wearable applications.
- Ultra-Miniature Package: The 4-USP (1.2x1.6mm) package is among the smallest available, enabling highly compact designs.
- High PSRR: 75dB at 1kHz provides excellent noise rejection for sensitive audio and RF circuits.
- Low Power: 87 µA quiescent current helps extend battery life in portable devices.
- Stable 1.2V Output: Provides a precise supply for low-voltage digital and analog ICs.
Compact Wearable Devices
The tiny 4-USP package (1.2x1.6mm) is perfect for smartwatches and fitness bands, providing a regulated 1.2V supply for low-power MCUs.
Hearing Aids and Audiology
The low quiescent current and small size make it ideal for hearing aids, where battery life and miniaturization are critical.
Portable Medical Sensors
Provides a stable 1.2V rail for glucose monitors and pulse oximeters, ensuring accurate sensor readings in a compact form factor.
IoT End-Nodes
Ideal for wireless sensor nodes that require a low-voltage supply and minimal power consumption to maximize battery life.
Smart Cards and Tags
The ultra-small footprint allows integration into smart cards and RFID tags, providing a regulated supply for embedded logic.
Low-Power Audio Codecs
Powers low-voltage audio codecs in portable devices, with the 75dB PSRR at 1kHz ensuring clean audio performance.
- Q: What is the output voltage of the XC6233H121GR-G?
- A: The output voltage is fixed at 1.2V.
- Q: What is the maximum output current?
- A: The maximum output current is 200mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided technical data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.95V at a 200mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 87 µA.
- Q: What package is this regulator available in?
- A: It is available in the ultra-compact 4-USP (1.2x1.6) package.
