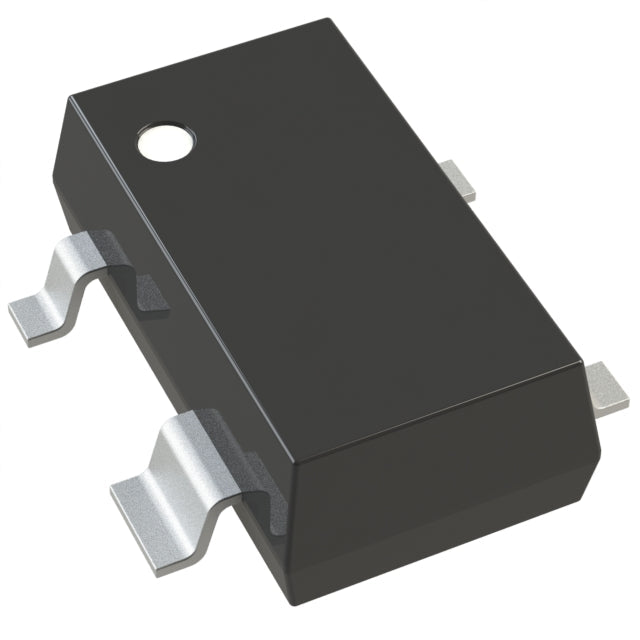

Torex Semiconductor Ltd XC6233H121NR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.40 | $0.40 |
| 15+ | $0.39 | $5.85 |
| 25+ | $0.38 | $9.50 |
| 50+ | $0.36 | $18.00 |
| 100+ | $0.32 | $32.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.95V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 87 µA |
| Current - Supply (Max) | - |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-82 |
| Supplier Device Package | SSOT-24 |
| ROHS |  |
The XC6233H121NR-G is a fixed 1.2V low dropout linear regulator from Torex Semiconductor, capable of delivering 200mA. Packaged in a compact SSOT-24, it features a low 87 µA quiescent current and a dropout voltage of 0.95V at full load. With PSRR of 75dB at 1kHz, it provides clean power for noise-sensitive portable and battery-powered applications.
- Ultra-Low Quiescent Current: 87 µA typical, ideal for battery-powered devices.
- High PSRR: 75dB at 1kHz, excellent for noise filtering.
- Compact SSOT-24 Package: Saves board space in space-constrained designs.
- Stable 1.2V Output: Perfect for low-voltage digital circuits.
Battery-Powered Wearables
The XC6233H121NR-G is perfect for wearables, providing a stable 1.2V supply for low-power MCUs and sensors. Its low 87 µA quiescent current significantly extends battery life.
Bluetooth Low Energy Modules
Power BLE modules with a clean 1.2V rail, ensuring reliable RF performance. The 75dB PSRR at 1kHz filters out noise from switching converters.
Portable Audio Players
Use this LDO to power audio codecs and headphone amplifiers, where low noise and high PSRR are critical for high-fidelity sound.
Smart Home Sensors
In IoT sensors and smart home devices, the XC6233H121NR-G provides efficient 1.2V power for digital logic, with a small SSOT-24 footprint saving PCB space.
Medical Monitoring Devices
For portable glucose meters and heart rate monitors, this regulator ensures stable 1.2V operation with minimal power consumption, ideal for continuous monitoring.
- Q: What is the output voltage of the XC6233H121NR-G?
- A: It provides a fixed 1.2V output.
- Q: What is the maximum output current?
- A: The maximum output current is 200mA.
- Q: What is the input voltage range?
- A: The input voltage range is from 1.2V up to 6.0V (absolute maximum).
- Q: What is the dropout voltage?
- A: Dropout voltage is typically 0.95V at 200mA load.
- Q: What is the quiescent current?
- A: Quiescent current is typically 87 µA.
- Q: What package is available?
- A: It comes in a SSOT-24 package.
