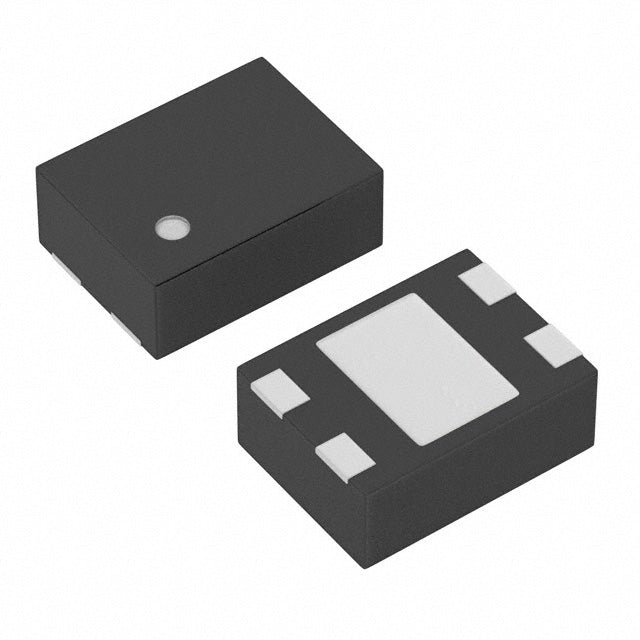

Torex Semiconductor Ltd XC6233H231GR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.63 | $0.63 |
| 15+ | $0.15 | $2.25 |
| 25+ | $0.14 | $3.50 |
| 50+ | $0.14 | $7.00 |
| 100+ | $0.12 | $12.00 |
| N+ | $0.02 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.52V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 87 µA |
| Current - Supply (Max) | - |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-UDFN Exposed Pad |
| Supplier Device Package | 4-USP (1.2x1.6) |
| ROHS |  |
The Torex XC6233H231GR-G is a high-performance 200mA LDO linear regulator delivering a fixed 2.3V output. Its ultra-compact 4-USP package and low 87µA quiescent current make it ideal for battery-powered and space-limited applications. With a dropout voltage of just 0.52V at full load and excellent 75dB PSRR at 1kHz, it ensures clean, stable power for sensitive electronics.
- Extended Battery Life: Ultra-low 87µA quiescent current minimizes standby drain in portable devices.
- Clean Power Delivery: 75dB PSRR at 1kHz filters supply noise for sensitive analog and RF circuits.
- Space-Saving Design: 4-USP (1.2x1.6) package fits high-density PCBs without compromising performance.
- Efficient Operation: Low 0.52V dropout at 200mA maximizes headroom and reduces power dissipation.
Portable Battery-Powered Devices
The low quiescent current of 87 µA extends battery life in wearables, IoT sensors, and handheld instruments where standby power is critical.
Noise-Sensitive Analog Circuits
With 75dB PSRR at 1kHz, this LDO provides clean, stable power for precision analog-to-digital converters, op-amps, and sensor signal conditioning.
Compact Wireless Modules
The 4-USP (1.2x1.6) package fits space-constrained designs for Bluetooth, Zigbee, and sub-GHz transceivers, ensuring reliable 2.3V rail.
Microcontroller Power Supply
Stable 2.3V output with 200mA capability powers low-voltage MCUs and digital logic, reducing noise-induced errors.
Industrial Sensor Interfaces
Wide input tolerance and low dropout ensure consistent performance in 3.3V to 2.3V conversion for industrial transducers and field transmitters.
Audio Codec and DAC Supplies
High PSRR minimizes supply-coupled interference, preserving audio fidelity in portable media players and smart speakers.
- Q: What is the output voltage of the XC6233H231GR-G?
- A: The fixed output voltage is 2.3V.
- Q: What is the maximum output current?
- A: It can deliver up to 200mA.
- Q: What is the input voltage range?
- A: The input voltage range starts from 2.3V (typical).
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.52V at 200mA output.
- Q: What is the quiescent current?
- A: The quiescent current is 87 µA.
- Q: What package is available?
- A: It comes in a 4-USP (1.2x1.6) package.
