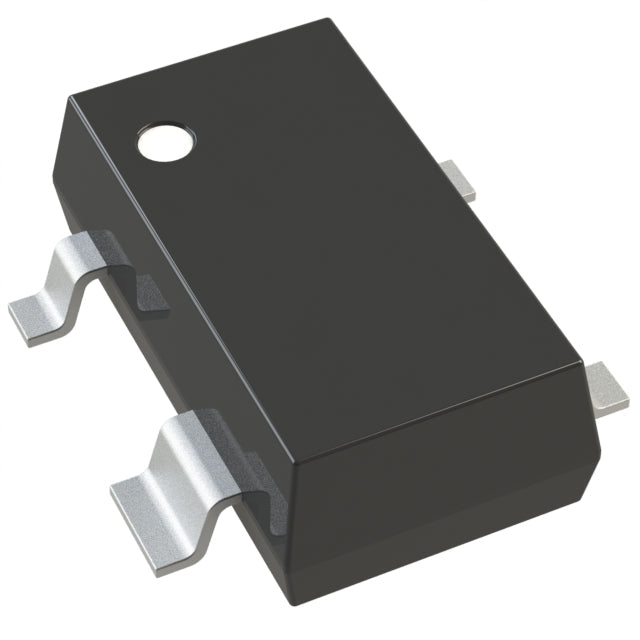

Torex Semiconductor Ltd XC6233H231NR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.40 | $0.40 |
| 15+ | $0.39 | $5.85 |
| 25+ | $0.38 | $9.50 |
| 50+ | $0.36 | $18.00 |
| 100+ | $0.32 | $32.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.52V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 87 µA |
| Current - Supply (Max) | - |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-82 |
| Supplier Device Package | SSOT-24 |
| ROHS |  |
The XC6233H231NR-G is a fixed 2.3V low dropout linear regulator from Torex Semiconductor, delivering up to 200mA. In a compact SSOT-24 package, it features a low 87 µA quiescent current and a dropout voltage of just 0.52V at full load. With PSRR of 75dB at 1kHz, it ensures clean power for portable and battery-operated electronics.
- Low Dropout Voltage: 0.52V at 200mA, maximizing efficiency.
- Low Quiescent Current: 87 µA typical, ideal for battery operation.
- High PSRR: 75dB at 1kHz, excellent noise rejection.
- Compact SSOT-24 Package: Ideal for space-constrained designs.
Portable Instrumentation
The XC6233H231NR-G provides a stable 2.3V supply for portable multimeters and handheld testers, with low quiescent current preserving battery life during field use.
Wireless Sensor Networks
Power 2.3V microcontrollers and RF transceivers in wireless sensor nodes. The low dropout voltage of 0.52V allows efficient operation from a 3.0V battery.
Digital Cameras and Imaging
Use this LDO for image sensors and DSP cores in digital cameras, ensuring clean 2.3V power with high PSRR to prevent image noise.
Consumer Electronics
In remote controls and small appliances, the XC6233H231NR-G offers reliable 2.3V power for logic circuits, with a compact package for slim designs.
Embedded Systems
For embedded controllers requiring a 2.3V rail, this regulator provides a simple, low-noise solution with thermal protection and current limiting.
- Q: What is the output voltage of the XC6233H231NR-G?
- A: It provides a fixed 2.3V output.
- Q: What is the maximum output current?
- A: The maximum output current is 200mA.
- Q: What is the input voltage range?
- A: The input voltage range is from 2.3V up to 6.0V (absolute maximum).
- Q: What is the dropout voltage?
- A: Dropout voltage is typically 0.52V at 200mA load.
- Q: What is the quiescent current?
- A: Quiescent current is typically 87 µA.
- Q: What package is available?
- A: It comes in a SSOT-24 package.
